Product Description

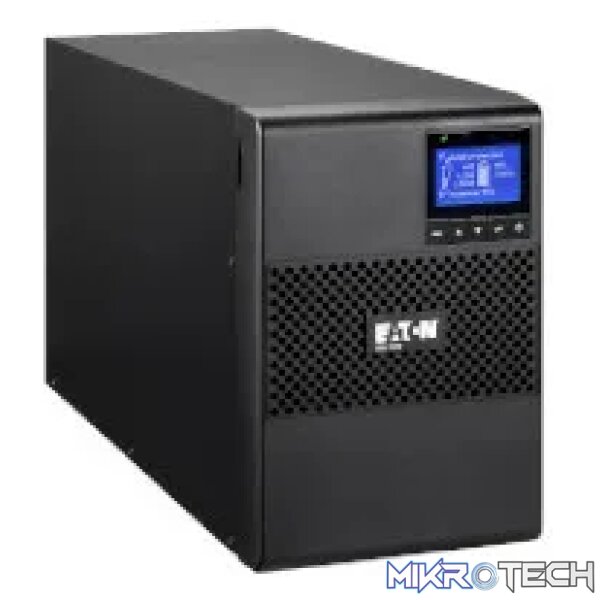

EATON 9SX 1500I TOWER
| Power factor | 0.9 |
|---|---|
| AC outlet types | C13 coupler |
| AC outlets quantity | 6 |
| Power plug | C14 coupler |
| Automatic battery test | Y |
| Input connection type | IEC C14 |
| Management card included | N |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Nominal output voltage | 230 |
| Bundled software | Intelligent Power Software suite |
| Nominal input voltage | 230 |
| Hot-swap battery | Y |
| Harmonized System (HS) code | 85078000 |
| Width | 160 |
| Output power capacity | 1.5 |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 |
| Input operation voltage (max) | 276 |
| Input operation voltage (min) | 190 |
| Output operation voltage (max) | 240 |
| Input frequency | 40/70 |
| Output operation voltage (min) | 200 |
| Waveform | Pure sine |
| UPS topology | Double-conversion (Online) |
| Output frequency | 50/60 |
| Number of input phases | 1 |
| Display type | LCD |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Number of output phases | 1 |
| ECO mode | N |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Serial interface | Y |
| USB 2.0 ports quantity | 1 |
| USB port | Y |
| Form factor | Tower |
| Height | 252 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 16 |
| Noise level | 43 |
| Output power | 1350 |
| Depth | 437 |
| Weight | 24500 |
Product Specifications
| Weight | 20.4700 kg |
|---|---|
| Dimensions | 56.0000 × 29.0000 × 37.0000 cm |
