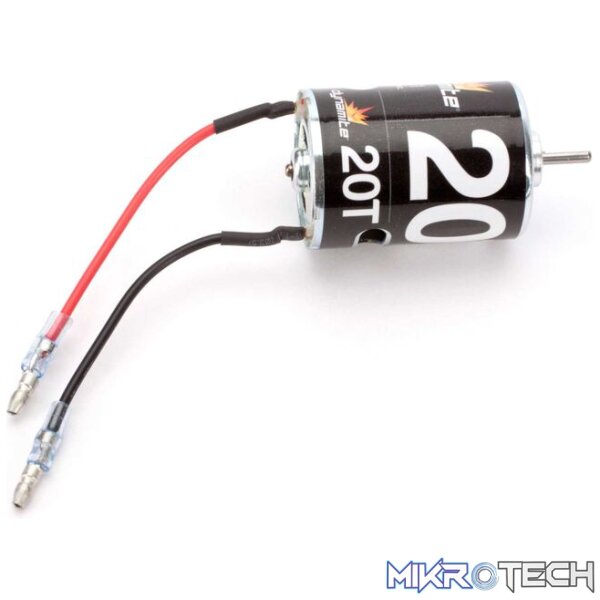

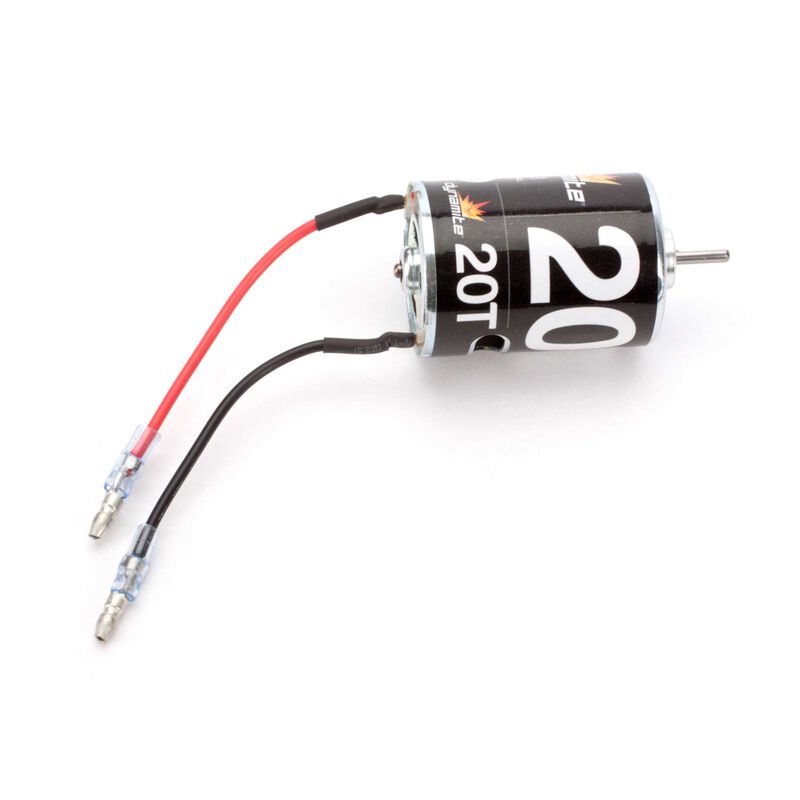

Dynamite 20-Turn Brushed Motor

The Dynamite 20-Turn 540 Brushed Motor (model DYN1171) is a reliable and versatile replacement motor designed for 1/10-scale RC vehicles. With a sealed inrunner design and balanced torque output, it delivers smooth performance across a wide range of applications.

Features

• 540-size brushed motor with 20-turn winding—for balanced low-speed torque and control
• Bushing-supported, sealed inrunner—low maintenance and rugged for hobby use
• Standard 3 mm bullet connector—compatible with most brushed ESC setups
• Fixed timing design—simple operation without tuning complexity

What’s Included

• Dynamite 20-Turn Brushed Motor (DYN1171)

What You’ll Need

• 1/10-scale RC vehicle with 540 motor mount
• Power source: 4–8 cell NiMH/NiCd or 2 S LiPo (4.8–9.6 V)
• Appropriate pinion gear and mounting hardware

Specifications

• Size: 540 brushed inrunner
• Turns: 20T
• Voltage: 4.8–9.6 V (NiMH/NiCd or 2 S LiPo)
• Shaft Diameter: 3.175 mm (1/8?)
• Shaft Length: 15.5 mm
• Motor Diameter: ? 36 mm; Length: ? 50 mm
