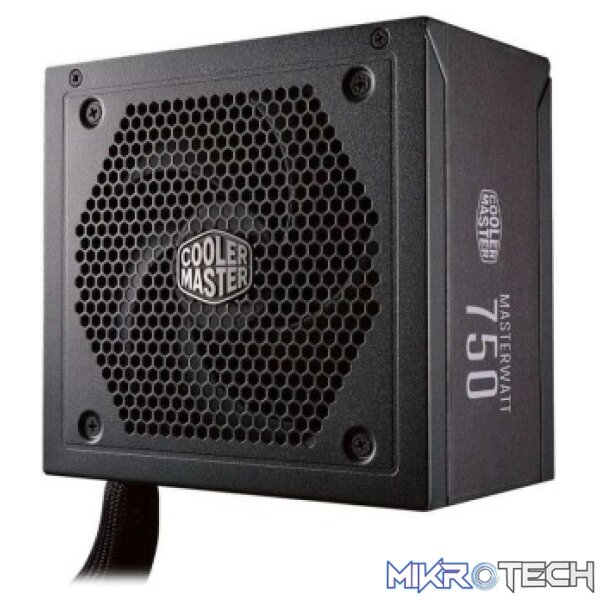

Cooler Master MasterWatt Modular 750w Power Supply
R2,599.99 incl. VAT
Out of stock
Overview:
The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance,MasterWatt is equipped with 16 AWG power cables,which reduces resistance,thereby increasing efficiency.
Features:
80 PLUS Bronze Certified
The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.
Durable LDB Bearing
Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.
Semi-Fanless up to 15% load
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.
Dual Forward and DC-to-DC Circuit Design
The Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in +3.3V and +5V outputs.
More Conductive PCI-e Cables
The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment.
| Product Name | MasterWatt 750 |
|---|---|
| Product Number | MPX-7501-AMAAB |
| Type | ATX 12V V2.4 |
| PFC | Active PFC |
| Operation Voltage | 100-240 Vac |
| Input Voltage | 100-240 Vac |
| Input Current | 10-5 A |
| Input Frequency | 50-60 Hz |
| Dimensions (LxBxH) | 140 x 150 x 86 mm |
| Fan Size | 120 mm |
| Fan Bearing | LDB |
| Power Good Signal | 100-500 ms |
| Hold Up Time | 16ms at 80% load |
| Efficiency | 85% @ Typical Load |
| ErP 2013 Lot 6 | Yes |
| MTBF | 100, 000 hours |
| Operating Temperature | 0 ~ 40°C |
| Protections | OCP / OVP / UVP / OPP / OTP / SCP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| Connectors | MB 24 Pin : 1 CPU 12V 4+4 Pin : 1 SATA : 9 Peripheral 4 Pin : 3 FDD Cable 4 Pin : 1 PCI-e 6+2 Pin : 4 |
