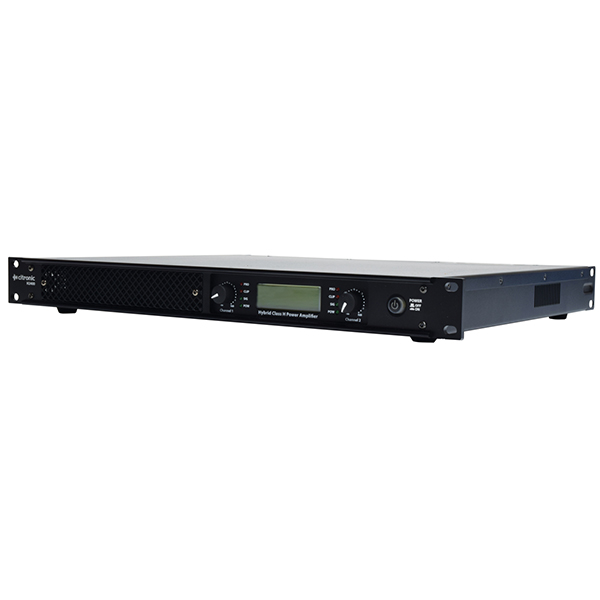

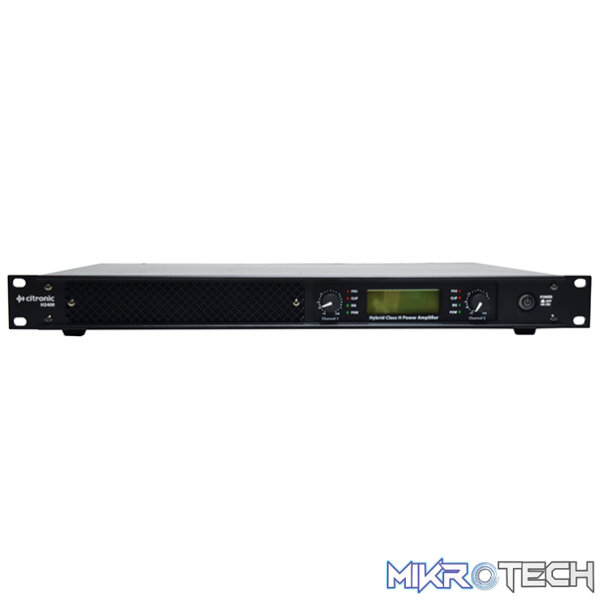

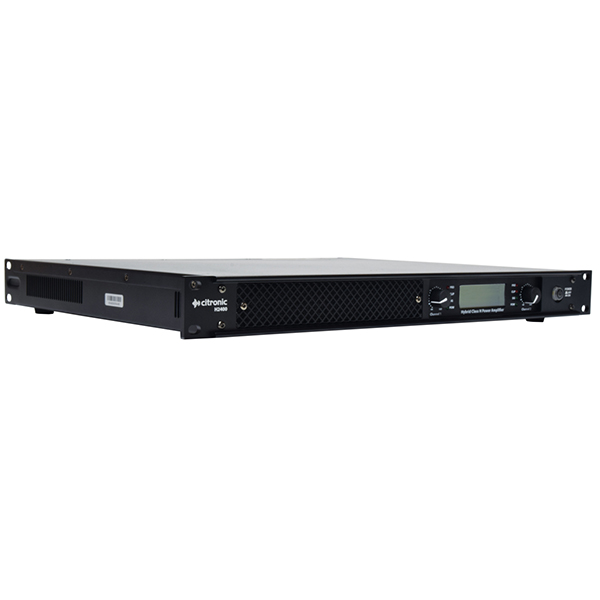

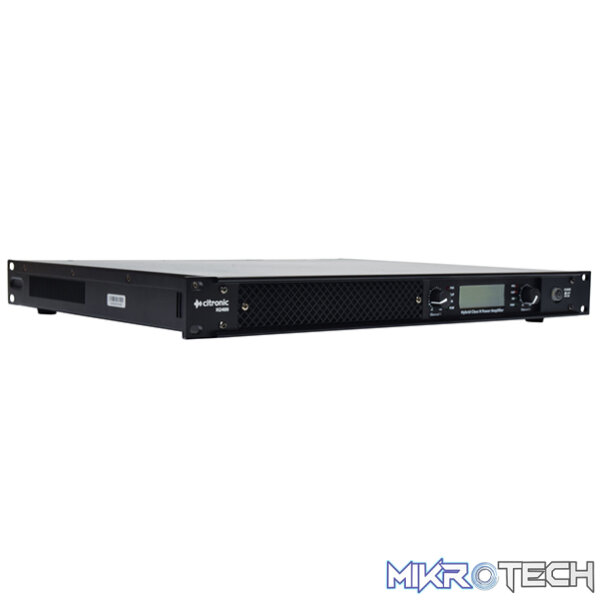

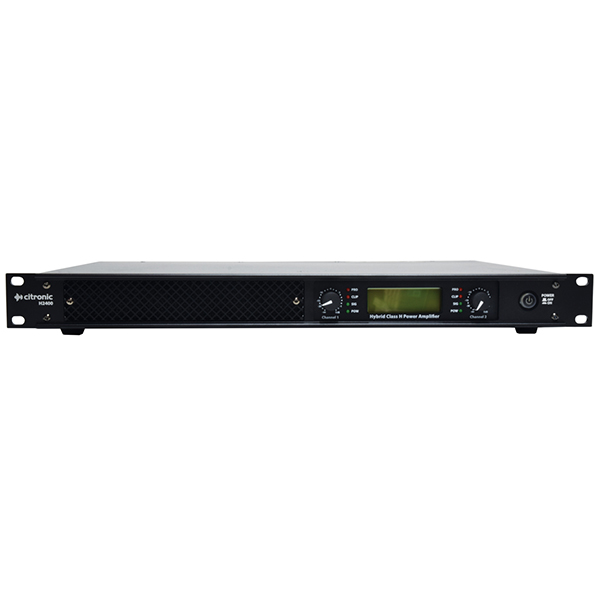

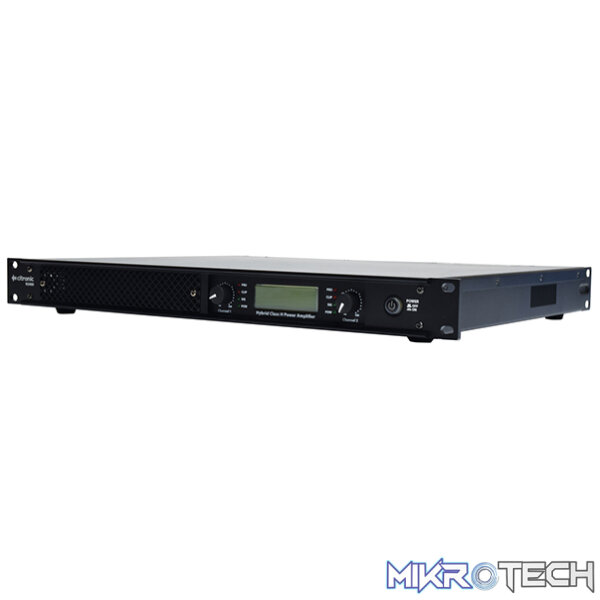

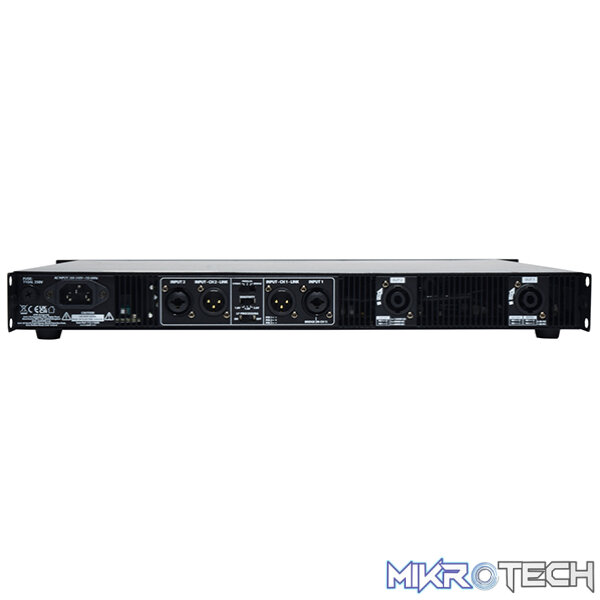

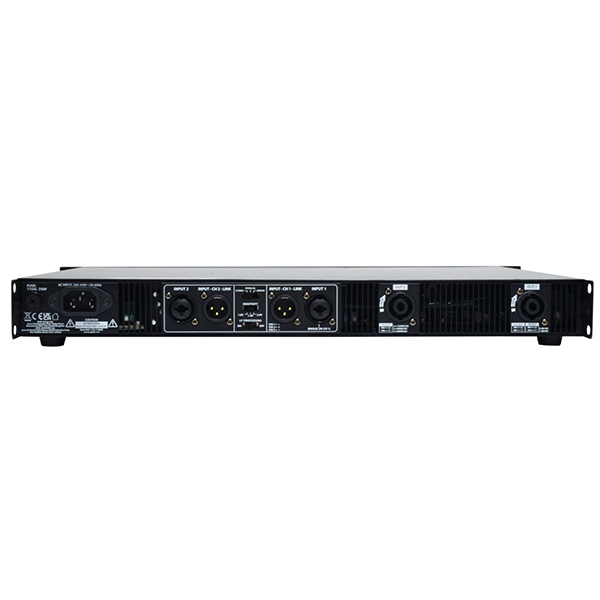

Citronic – H2400 1U 19In Class-H Amplifier 2X 900Wrms

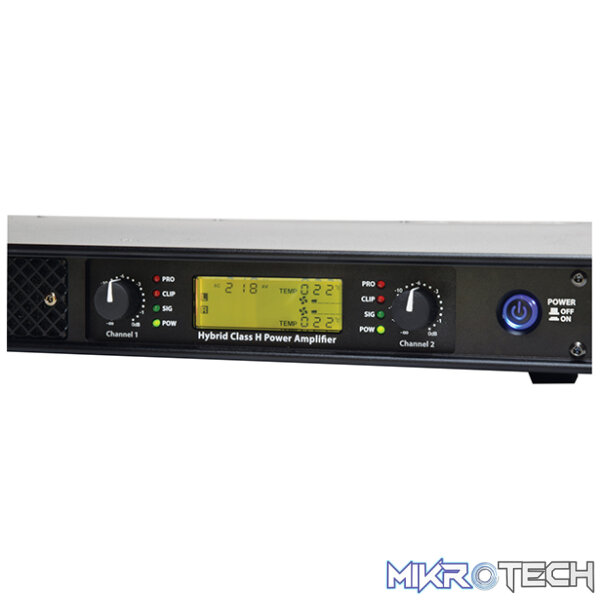

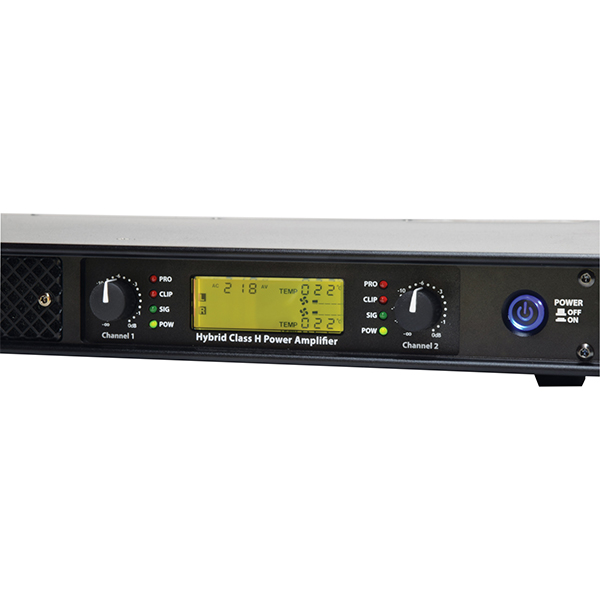

Lightweight power amplifiers in a 19? rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate a

FEATURES:

• Hybrid class-H circuit design
• Digitally controlled and monitored power section
• Switchable 120Hz low-pass crossover
• Backlit LCD status display
• Full internal thermal and overload protection
• Stable down to 2 Ohms (4 Ohms bridged)

SPECIFICATIONS:

• Power supply:
  200-240Vac, 50Hz (IEC)
•
  Amplifier : construction:
  Hybrid Class-H
•
  Protection:
  Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting
•
  Frequency response:
  20Hz-20KHz ±0.5dB
•
  THD+N:
  0.2%
•
  S/N ratio:
  -95dB
•
  Damping factor:
  >700
•
  Input sensitivity:
  1.0V – 1.4V – 2.0V switchable
•
  Input impedance:
  20K? (balanced),10K? (unbalanced)
•
  Dimensions:
  483 x 361 x 44 mm (1U)
•
  Fuse T8AL :
  250V
•
  Power rms @ 8 Ohms :
  2 x 600W
•
  Power rms @ 4 Ohms :
  2 x 900W
•
  Power rms @ 2 Ohms :
  2 x 1200W (40ms burst 1kHz sine)
•
  Power rms bridge @ 8 Ohms :
  1800W
•
  Power rms bridge @ 4 Ohms :
  2400W (40ms burst 1kHz sine)
•
  Weight :
  7.0kg
