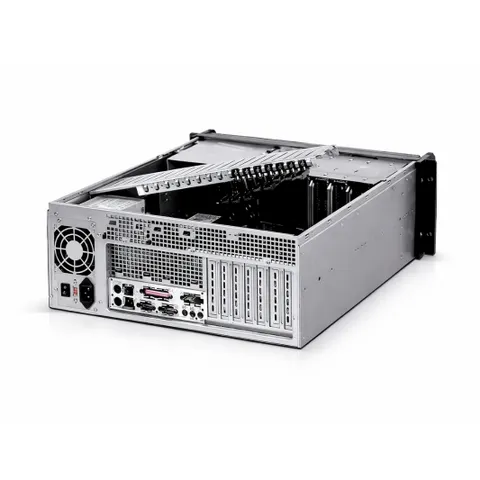

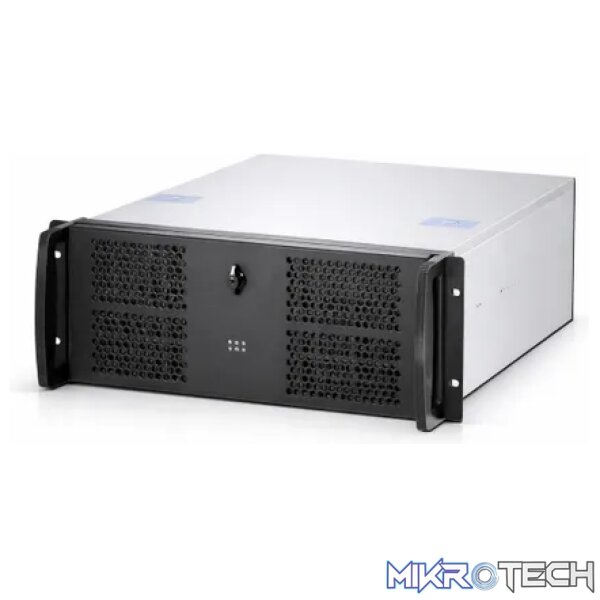

Cattex 4U 450MM Black Rackmount Chassis – Components

E-ATX Chassis 4U Rackmount

E-ATX Chassis 4U Rackmount are perfect for storage-dense applications, or where a lot of storage drives are to be installed

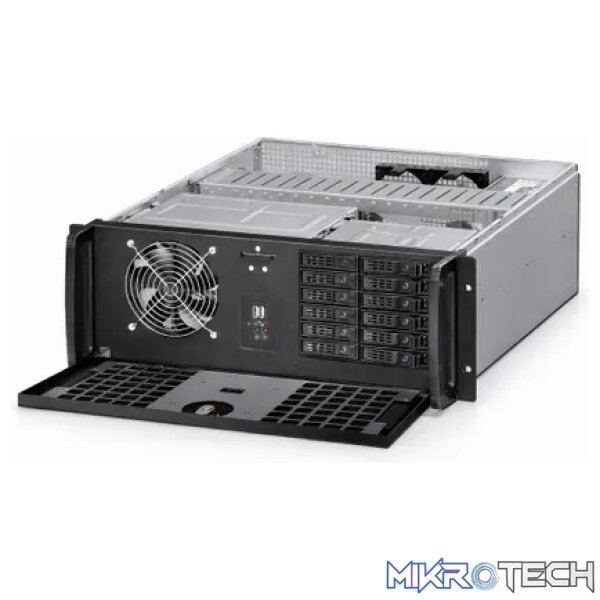

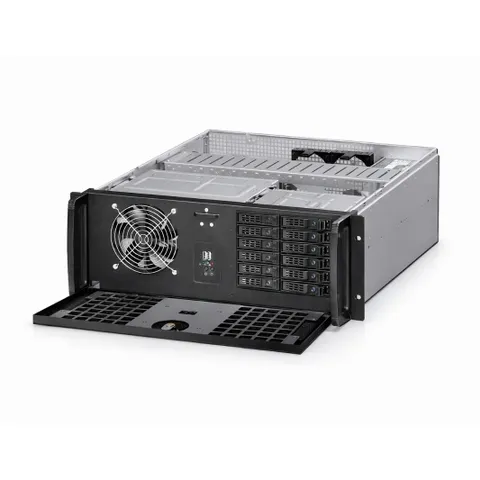

* Drive Space: Three 5.25? ODD bay & Seven 3.5? HDD bay (max. 7 HDD allowed if ATX MB installed)

* All drive bays equipped with damping function to reduce vibration & extend storage life

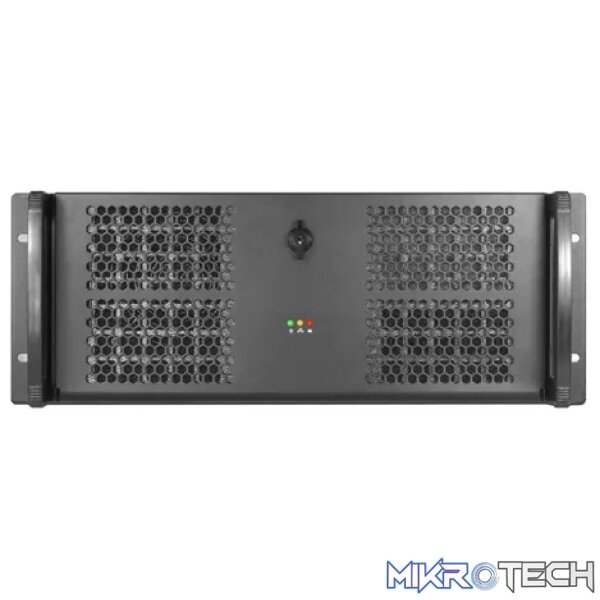

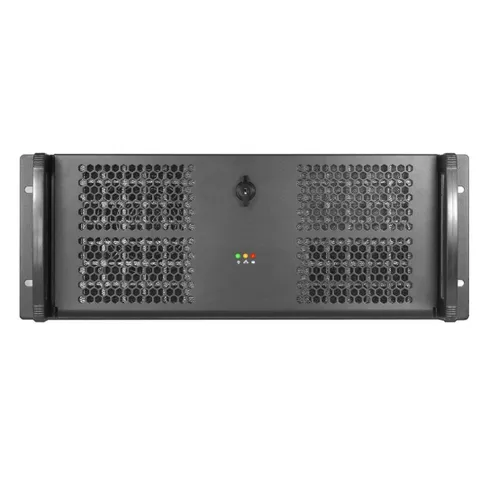

* Equipped with front door by a butterfly security key lock & with removable dust air filter function

* Screwless hand-free top cover design (screws can also be used & fixed)

* The main sheet metal constructed by 1.2mm~2.0mm SGCC thickness mechanism

* Equipped with two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)

* Standard with one brand new 120mmx25mm intake fan at front (fan part# D12SM-12)

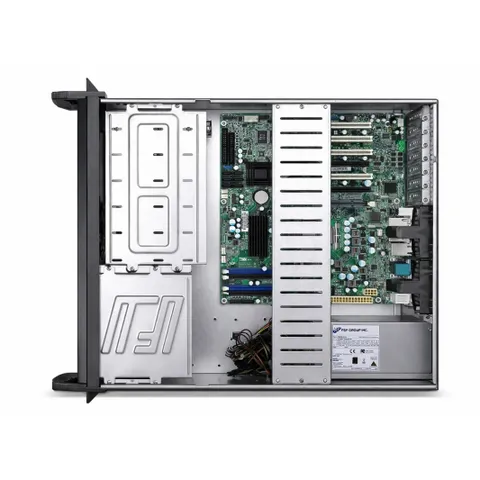

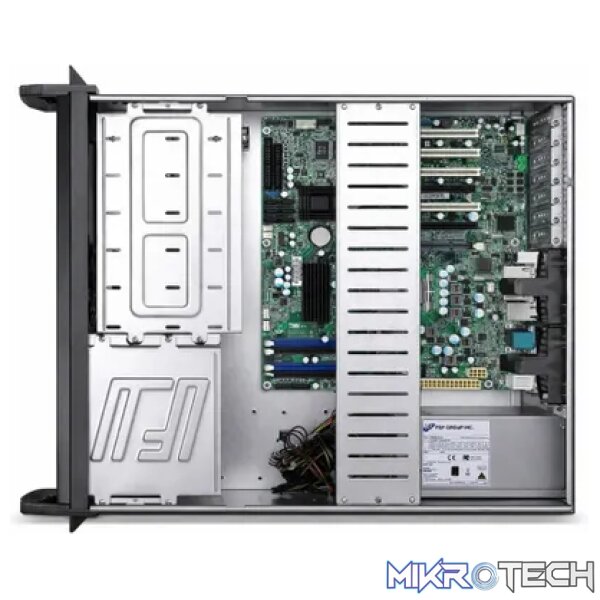

* Adjustable hold-down card holder with 7 upward & downward adjustable clamps

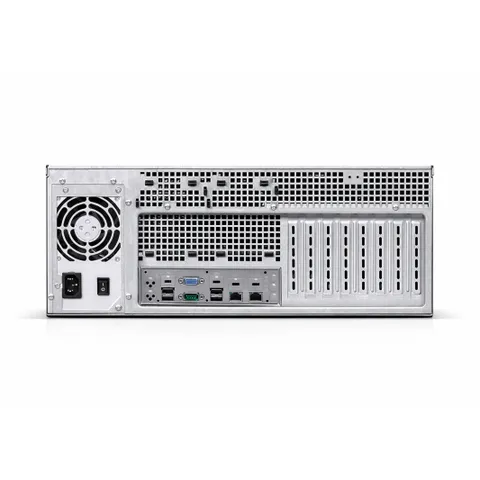

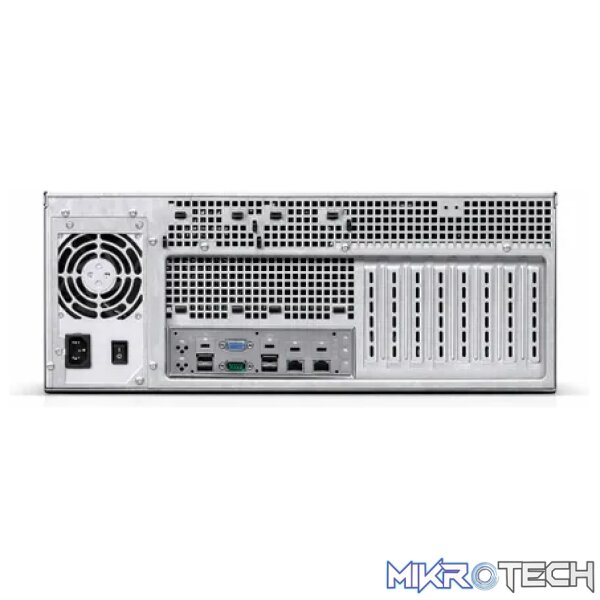

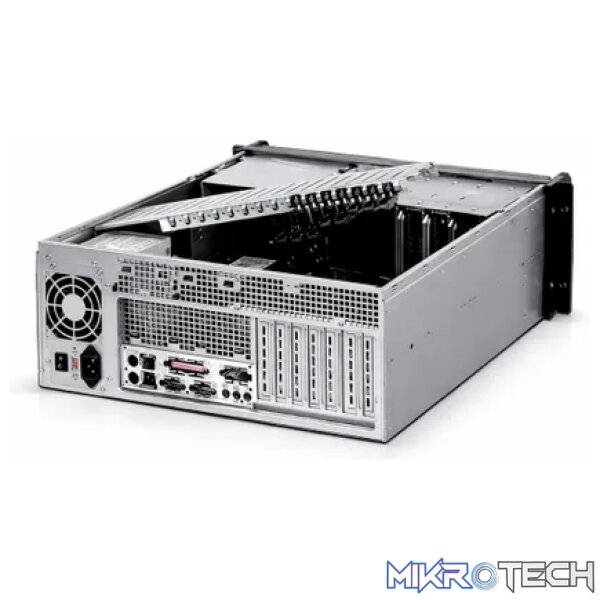

* Build-in two 80mmx25mm ABS screwless fan brackets at rear panel (fans are option)

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~260mm)

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)

* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)

* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)

* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Compatible MB: EEB 12?- 13?, CEB 12?- 10.5?, ATX 12?x9.6?, MicroATX 9.6?x9.6?, Mini-ITX 6.7?x6.7?

* Support 7 full height expansion cards (max. 240mm deep if HDD installed at front)

* Support 7 full height expansion cards (max. 320mm deep if no HDD installed at front)

* Standard paint: scratch-resistant black textured at front side of chassis

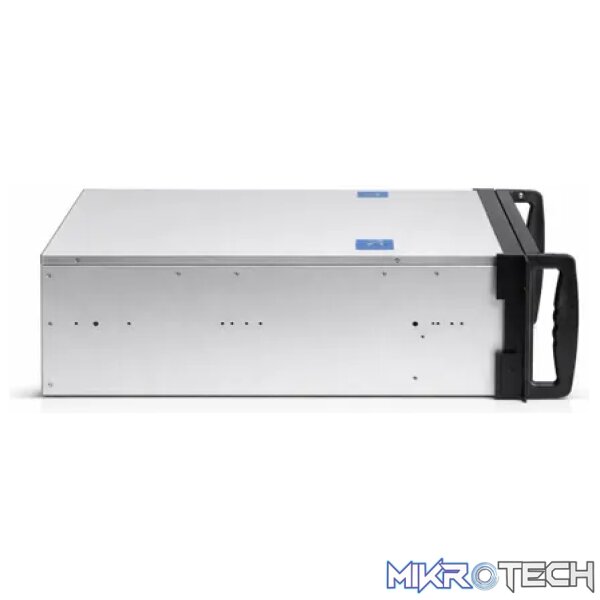

* Chassis dimension: 19? x 4U x 450mm (17.71? deep)

* Accessory: MB stand-off x12, #6 round screw x40, M3 truss screw x8, key x2

* Package: NW 10KGM, GW 12 KGM, 3.19 CUFT (carton size at 62x56x26cm)
