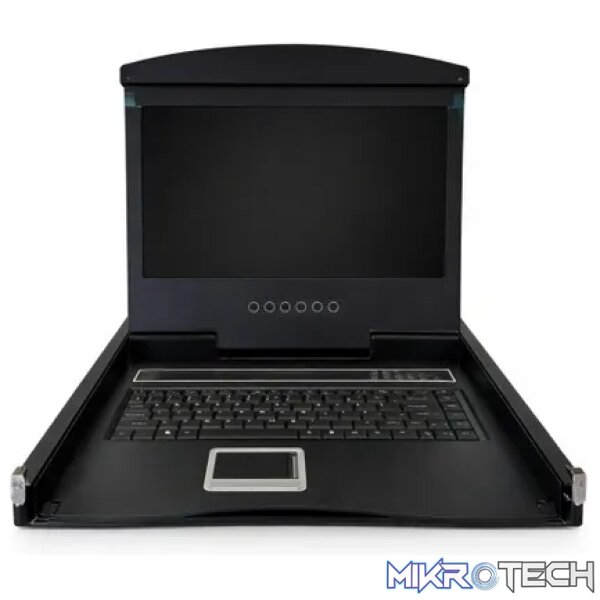

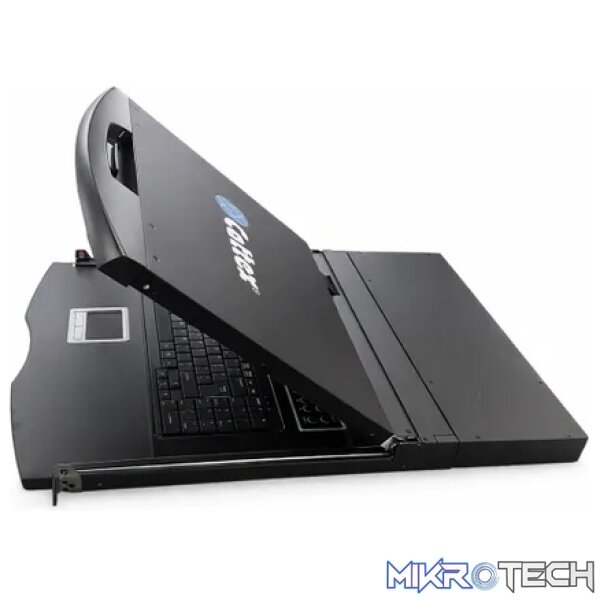

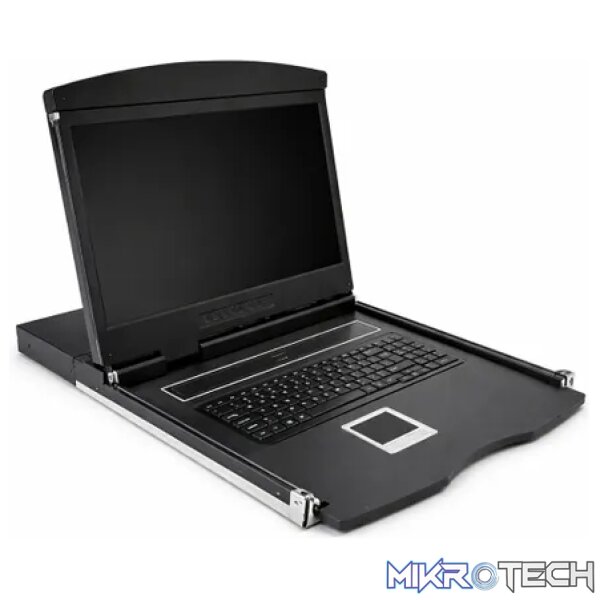

Cattex 4 Port 17″ VGA LCD KVM Console – Networking

The KVM control platform is one which integrates a multiple port KVM switch into a 1U height chassis. You can control multiple computers with one platform (keyboard, mouse and monitor).

The KVM switch can control single or multiple PC’s by direct connection and it can control 256 PC’s at most by 2 level cascade connection.

It is easy and quick to install. Just connect the cable to the correct port without need for software configuration.

KVM switches provide two methods to control the computers connected to it:

 Features:

Front LCD Console (keyboard, mouse, monitor 17? ) + 4ports KVM Module design; It’s very
flexible and convenient for combination;

Keyboard is with demountable design, with 9 different languages: American, English, German,

French, Spanish, Swiss, Turkish, Russian, Italian;

IP optional ( IP card could be installed inside KVM module);

The front USB design;

Cascade function support;

Total length: 611mm, fit for 800-1200mm cabinet

1 Yr Warranty
