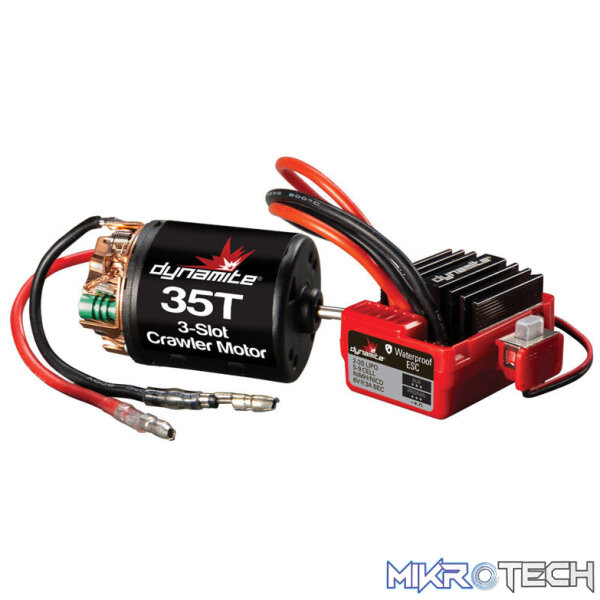

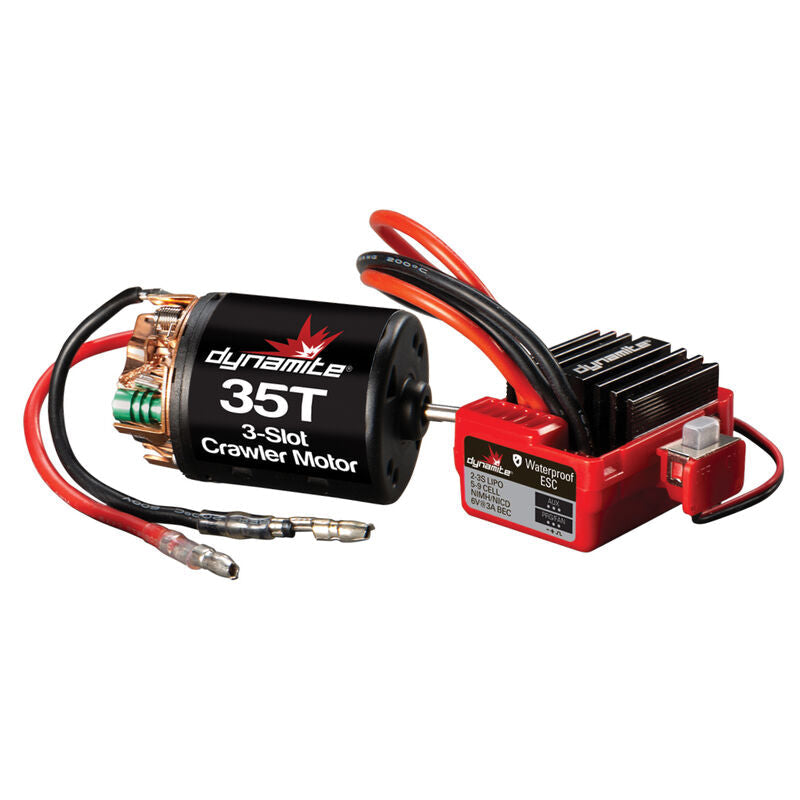

Brushed Crawler Motor/ESC Combo 35T

The Dynamite Brushed Crawler Motor & ESC Combo (35-T, model DYNS0900) offers an all-in-one power solution for 1/10-scale rock crawlers. Featuring a rebuildable 540-size motor and waterproof ESC, it’s built for reliable crawling, even in wet and rough terrain.

Features

• Rebuildable 540-size brushed motor with 35 winding turns—for smooth low-speed torque
• Water-resistant brushed ESC compatible with NiMH and LiPo systems
• Multiple drive modes: forward/brake/reverse, forward/brake only, and crawler-specific mode
• “On-the-fly” adjustable drag brake via 3-channel radios
• LiPo cutoff protection and rugged design—perfect for demanding crawler builds

What’s Included

• 540-size 35-turn brushed motor
• Waterproof brushed ESC

Needed to Complete

• 1/10-scale crawler chassis (e.g., Axial SCX10, Capra, or similar)
• Motor pinion gear and appropriate mounting hardware

Specifications

• Motor
  • Size: 540 brushed
  • Turns: 35
  • Dimensions: 36 mm diameter × 53 mm length
  • Shaft: 1/8 in (3.12 mm) × 12.5 mm
• ESC
  • Voltage: 2–3 S LiPo or 6–9-cell NiMH/NiCd
  • Continuous Current: 40 A
  • Peak Current: 180 A
  • Braking Current: 90 A
  • BEC: 6 V/3 A
  • Connectors: IC3 battery, 3.5 mm bullet motor
  • Dimensions: 46.5 × 34 × 28.5 mm
  • Weight: 68 g
• ESC On-Resistance (FET): 0.002 ?; PWM Frequency: 1 kHz
