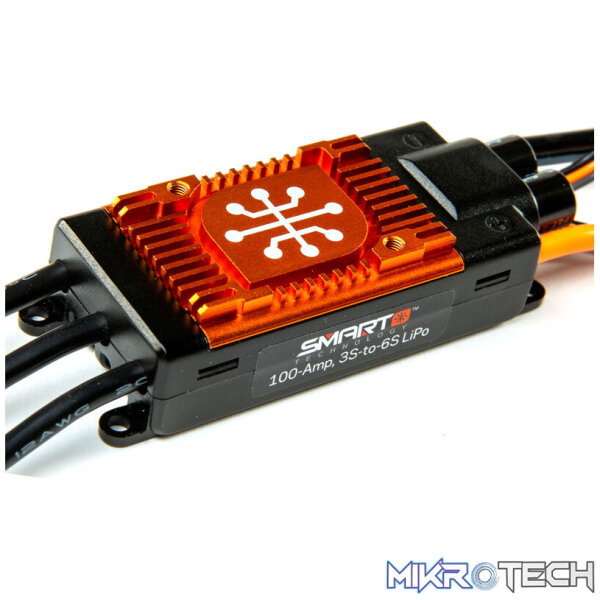

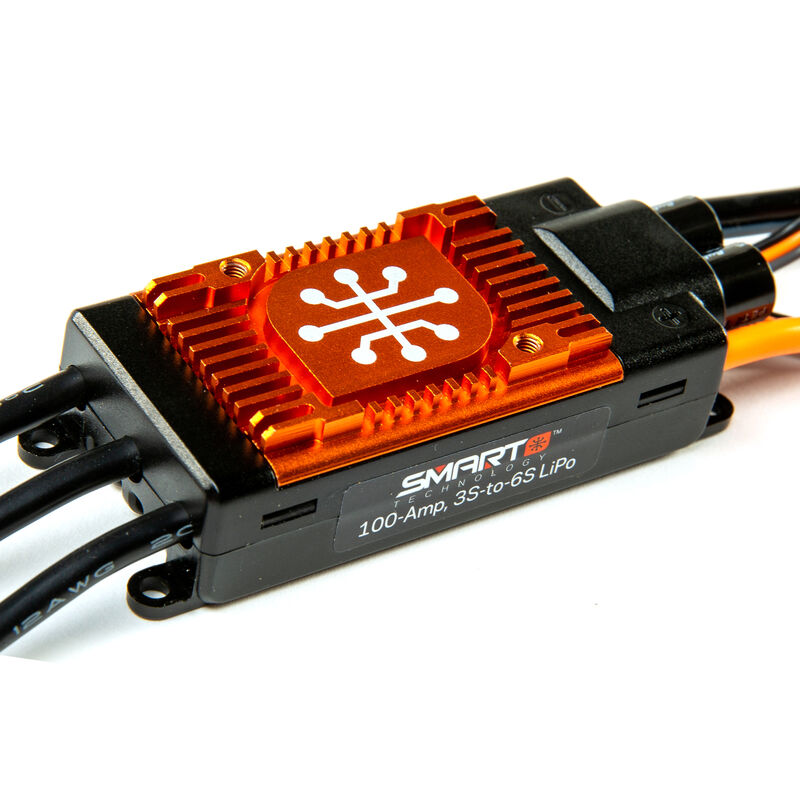

Avian 100-Amp Brushless Smart ESC 3S-6S

The Avian 100A Smart ESC delivers high current capacity and smooth throttle performance for large fixed-wing aircraft and helicopters. With built-in Smart telemetry and a robust design, it provides both reliability and advanced features for demanding pilots.

Features

• Integrated Smart technology with one-wire telemetry for real-time voltage, current, temperature, cell data, and RPM
• High-performance 32-bit ARM processor for precise throttle control
• Multiple programming methods: throttle stick, optional Programming Box, or SmartLink USB PC app
• On-transmitter programming with compatible Smart radio and receiver
• Selectable thrust reversing (requires Smart radio/receiver)
• Efficient MOSFET design for reduced heat and improved reliability
• IC5 battery connector (compatible with EC5)
• Comprehensive protection: over-current, over-temperature, low-voltage cut-off, failsafe

What’s in the box

• Avian 100A Smart ESC (IC5 battery lead, 4 mm motor bullets)
• Smart decal sheet
• Product manual

Needed to complete

• Aircraft receiver (Smart/SRXL2 compatible recommended)
• 3S–6S LiPo battery (IC5/EC5 compatible)
• Compatible transmitter

Specifications

• Application: Air (aeroplane/heli)
• Input voltage: 3S–6S LiPo (max 22.2 V)
• Maximum continuous current: 100 A
• Maximum burst current: 120 A
• BEC type: Switch-mode
• BEC voltage: 6.0 V / 7.2 V (selectable)
• BEC current (continuous/peak): 8 A / 20 A
• Battery connector: IC5 (EC5 compatible)
• Motor leads: 4 mm bullets
• Brakes / forward: Yes / Yes (programmable)
• Adjustable timing: Yes
• Low-voltage cut-off: Programmable
• Telemetry: Smart one-wire (SRXL2)
