Sold out
Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE

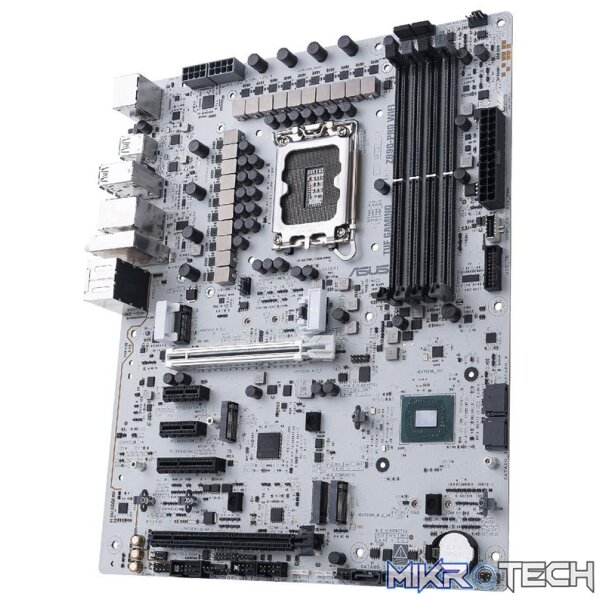

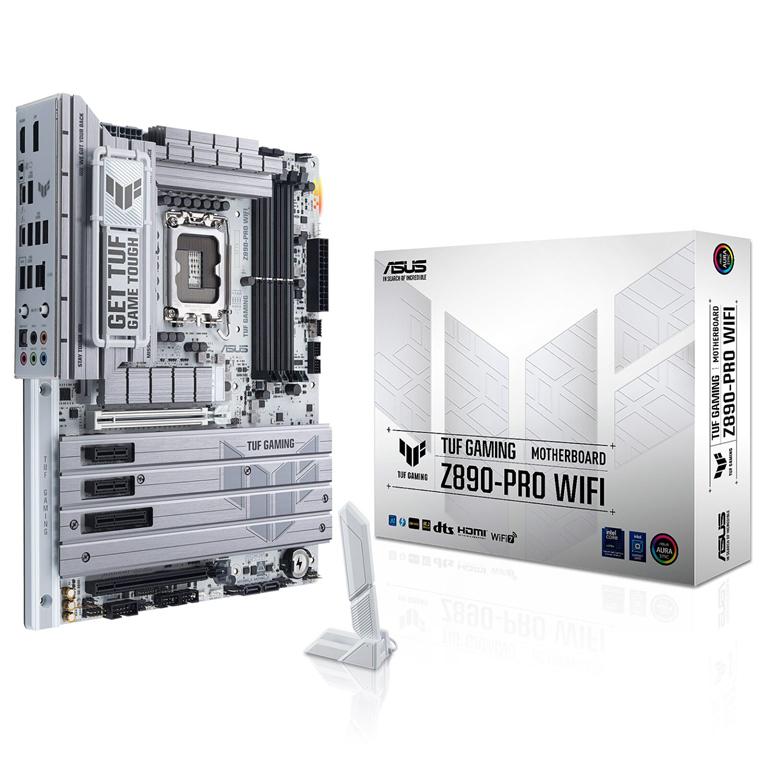

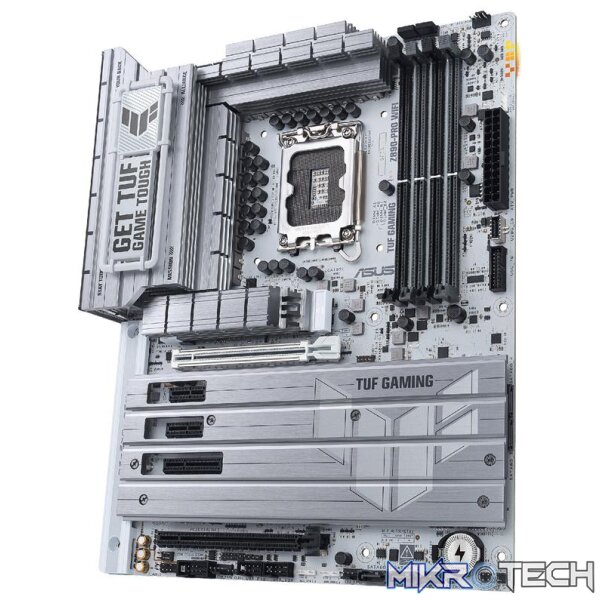

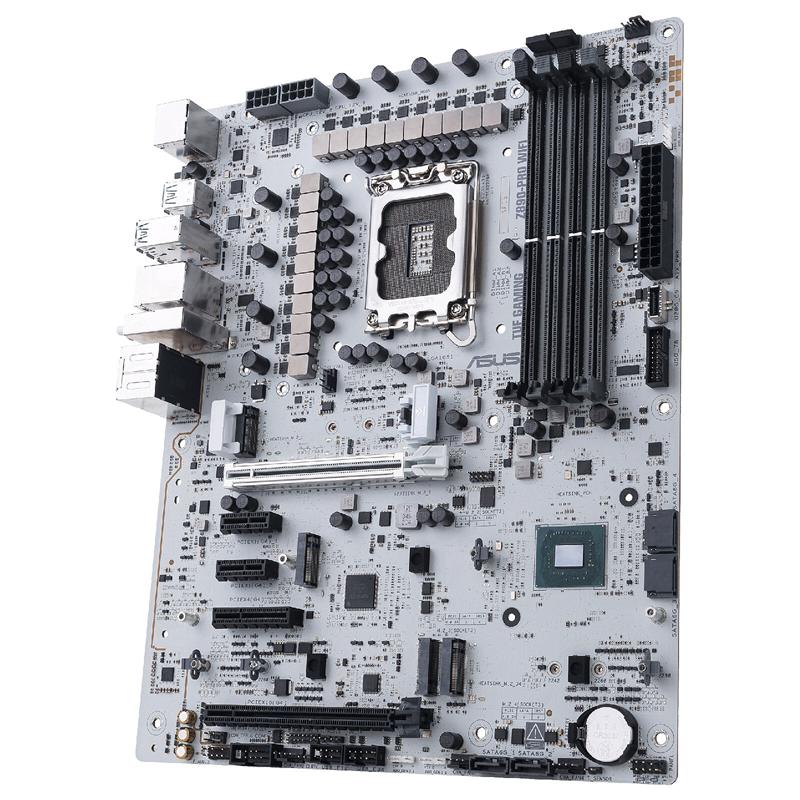

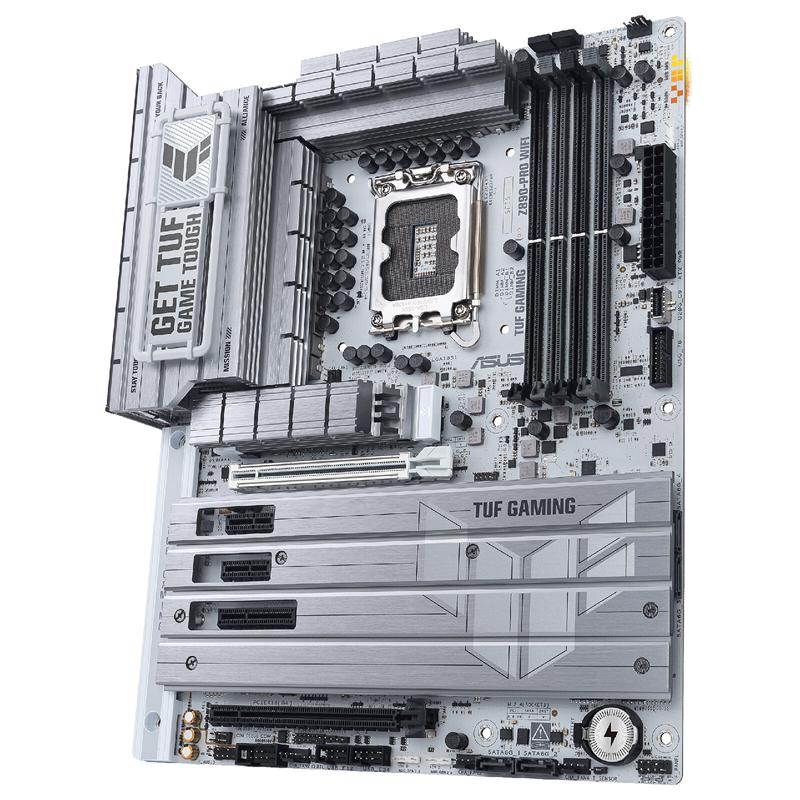

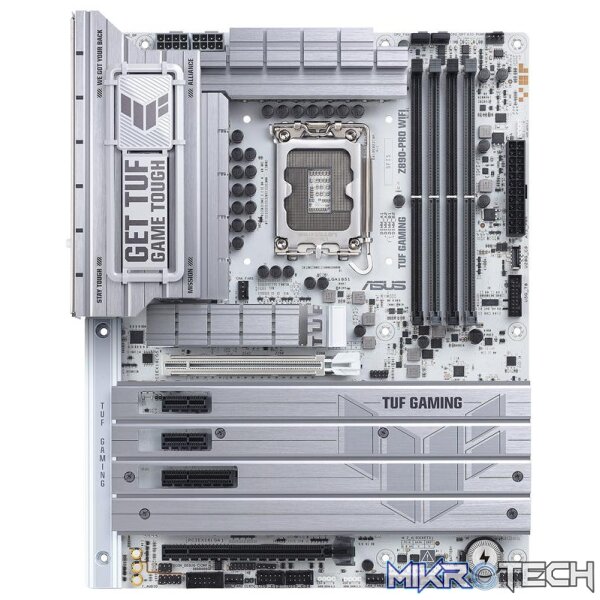

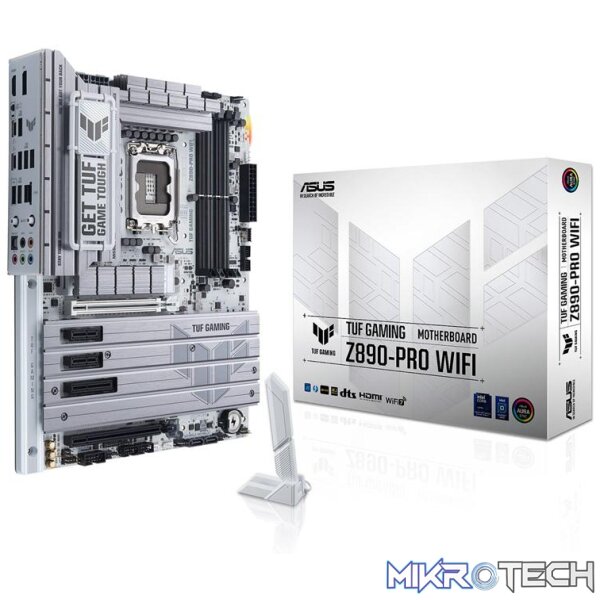

ASUS TUF GAMING Z890-PRO WIFI Intel Z890 Arrow Lake LGA1851 ATX Motherboard
KEY FEATURES:
– ATX Form Factor
– Intel Z890 Chipset, Socket LGA1851
– 4x DIMM Slots, Max. 192GB, DDR5
– Supports up to DDR5-8600MHz+(OC)
– Clocked Unbuffered DIMM (CUDIMM) Memory Support
– 1x PCIe 5.0 x16 Slot
– 1x PCIe 4.0 x16 Slot (supports x4 mode)
– 1x PCIe 4.0 x4 Slot, 2x PCIe 4.0 x1 Slots
– Total Supports 4x M.2 Slots and 4x SATA 6Gb/s Ports
– 2x Thunderbolt 4 USB Type-C Ports
– 6x USB 10Gbps Type-A Ports
– 1x Intel 2.5Gb Ethernet Port
– 802.11be 2×2 Tri-Band 160MHz Bandwidth WiFi 7 Adapter
– Bluetooth v5.4
– Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
– ASUS TUF PROTECTION
– DIGI+ VRM (Digital power design with DrMOS)
– ASUS Q-Design
– ASUS Thermal Solution
– ASUS EZ DIY
– ASUS Aura Sync
– BIOS FlashBack Button
– 3 Year Warranty
Product Description
Description

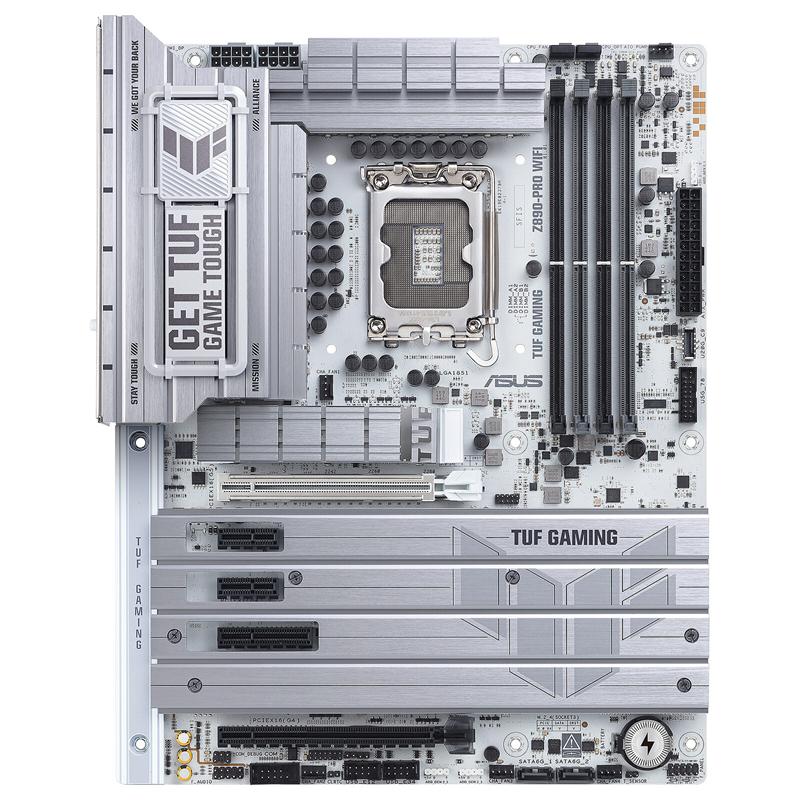

ASUS TUF GAMING Z890-PRO WIFI Intel Z890 Arrow Lake LGA1851 ATX Motherboard
90MB1IR0-M0EAY0
ASUS TUF GAMING Z890-PRO WIFI
- Support for Intel Core Ultra Arrow Lake-S processors on socket LGA 1851
- Support for DDR5 memory, up to 8600 MHz (OC)
- 1 x M.2 PCIe 5.0 4x slot + 3 x M.2 PCIe 4.0 4x slots
- PCI-Express 5.0 16x slot with Q-Release technology (easy graphics card ejection)
- ASUS 5X PROTECTION III with DIGI+ VRM, LANGuard, Overvoltage Protection
- Optimised cooling: Large VRM heat sinks and M.2 slot heat sinks.
- 2 Thunderbolt 4 (USB-C) 40 Gbps compatible Display Ports
- 2.5 GbE LAN
- Wi-Fi 7 / Bluetooth 5.4
SPECIFICATIONS | |
| Brand | ASUS |
| Series | TUF GAMING |
| Model | TUF GAMING Z890-PRO WIFI (90MB1IR0-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(series 2), LGA1851* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* | |
| Dual channel memory architecture | |
| DIMM Fit | |
| Supports Intel Extreme Memory Profile (XMP) memory module | |
| ASUS Enhanced Memory Profile III(AEMPIII) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** | |
| 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs**** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| ****Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. | |
| ***** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| Expansion Slots | Intel Core Ultra Processors(series 2)* |
| 1 x PCIe 5.0 x16 slot | |
| Intel Z890 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x4 slot | |
| 2 x PCIe 4.0 x1 slots | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors(series 2)* | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| Intel Z890 Chipset | |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
| Bluetooth v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. | |
| USB | Rear USB (Total 8 ports) |
| 2 x Thunderbolt 4 ports (2 x USB Type-C) | |
| 6 x USB 10Gbps ports (6 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge )* | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
| – Impedance sense for front and rear headphone outputs | |
| – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| – Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| – Audio Shielding | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| – Audio cover | |
| – Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |

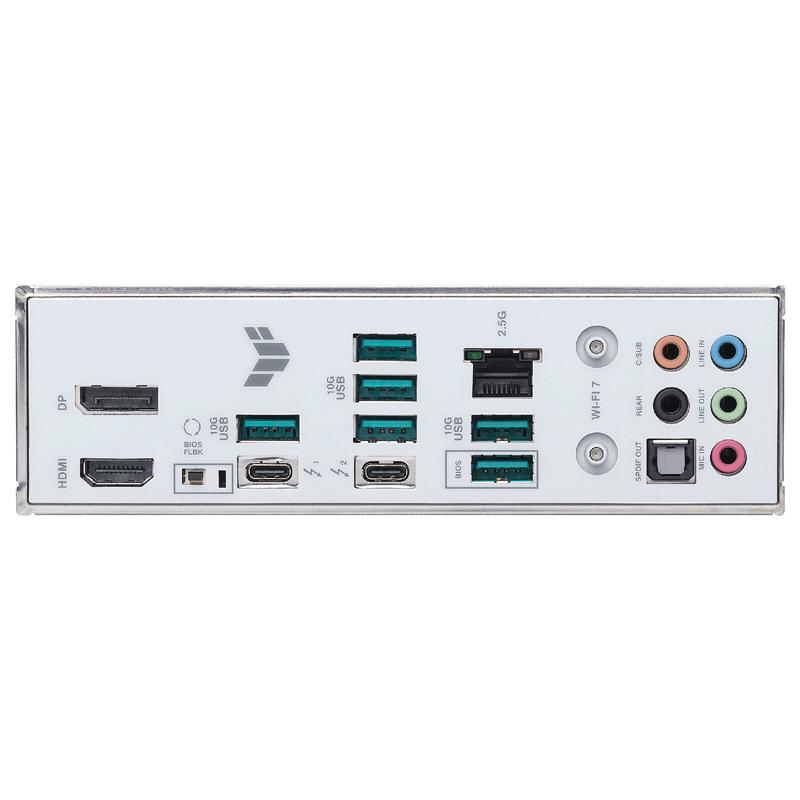

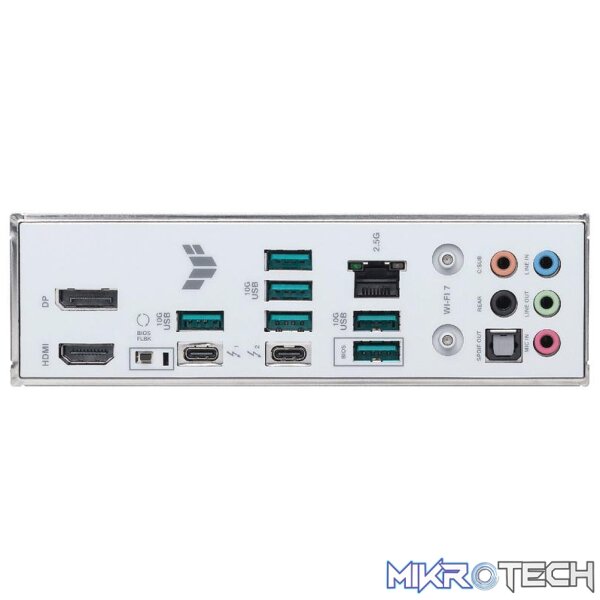

| Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C ports |
| 6 x USB 10Gbps ports (6 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt (USB4) header | |
| Special Features | ASUS TUF PROTECTION |
| – DIGI+ VRM (- Digital power design with DrMOS) | |
| – ESD Guards | |
| – TUF LANGuard | |
| – Overvoltage protection | |
| – SafeSlot | |
| – Stainless-steel back I/O | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – M.2 Q-Release | |
| – M.2 Q-Slide | |
| – Q-Release Slim (with PCIe SafeSlot) | |
| – Q-Antenna | |
| – Q-Dashboard | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink backplate | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – BIOS FlashBack button | |
| – BIOS FlashBack LED | |
| – CPU Socket lever protector | |
| – ProCool | |
| – Pre-mounted I/O shield | |
| – SafeDIMM | |
| Aura Sync | |
| – Addressable Gen 2 headers | |
| Front Panel USB 20Gbps with PD Fast Charge Support | |
| – Support: up to 30W fast charging and USB Wattage Watcher | |
| – Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A | |
| – Compatible with PD3.0 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
