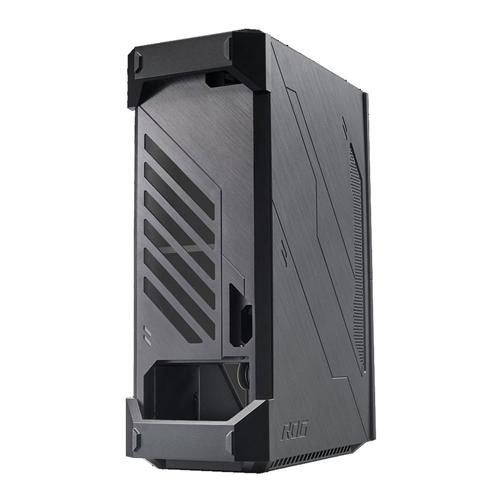

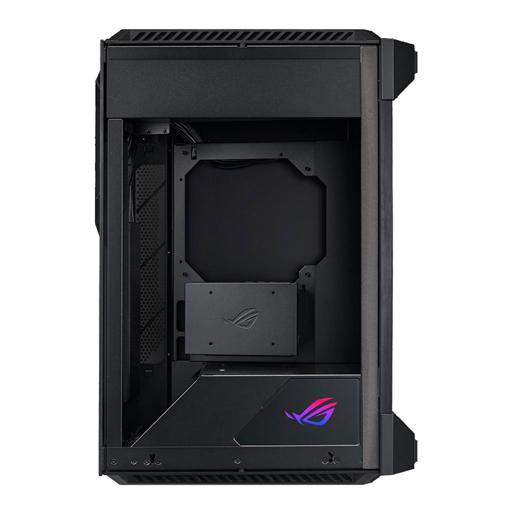

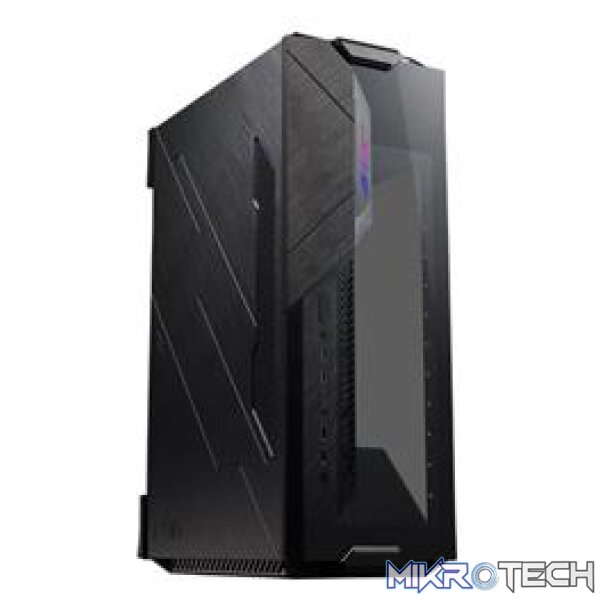

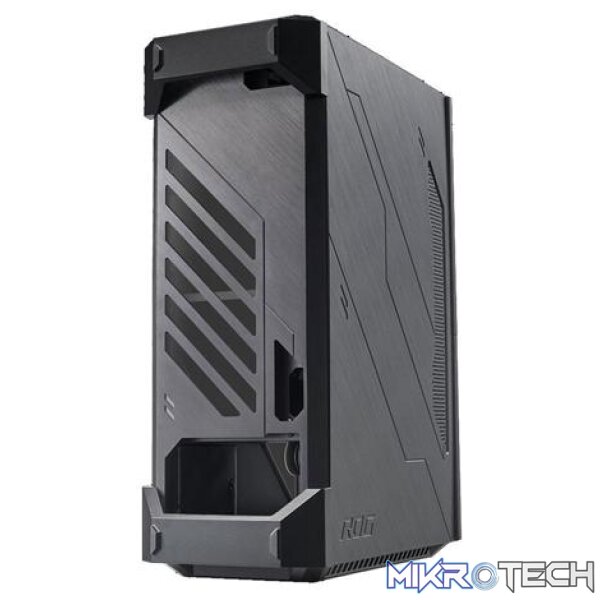

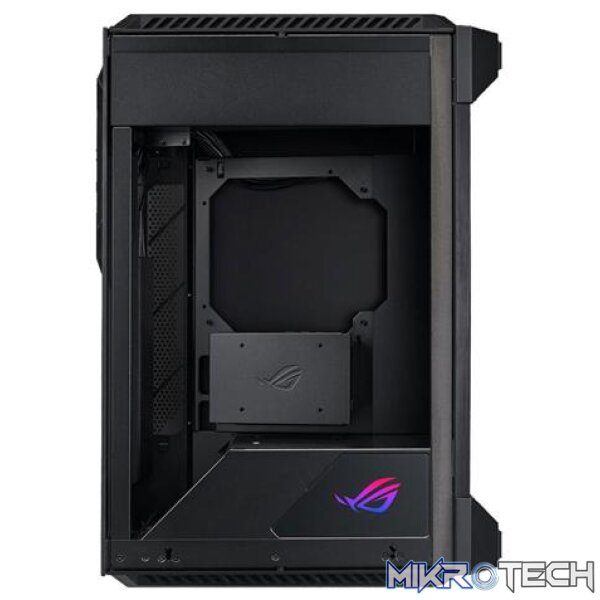

ASUS ROG Z11 Mini-ITX Case with Tempered Glass Window
KEY FEATURES:
– Windowed Side Panel
– Mini-Tower Form Factor
– Colour: Black
– Supports Mini-DTX, Mini-ITX Motherboards
– 2x USB 3.2 Type-A Gen 1, 1x USB 3.2 Type-C Gen 2
– 2x USB 2.0 Type-A, 1x Audio Jack
– 2.5? and 3.5? Drive Bays
– Radiator Maximum Supported Length: Up To 240mm
– CPU Cooler Clearance: 130mm
– Maximum GPU Length: 320mm
– 3 Year Warranty
Description
ASUS ROG Z11 Mini-ITX RGB Chassis with Tempered Glass
90DC00B0-B39000
If you’re a PC enthusiast looking for a sleek and stylish look that rises above the competition, the ASUS ROG Z11 delivers just that, by empowering users to showcase compact builds without compromise. Designed diligently with the enthusiast in mind to maximize function, flexibility and connectivity. The patented 11° tilt design offers optimized airflow and heat dissipation to produce an innovative solution for thermal performance with serious hardware – such as an ATX power supply or a 3-slot graphics card without a riser cable. Plus, for those who desire water cooling, Z11 offers sufficient space and the alternative of a custom liquid cooling loop. Adding style to substance, internal build components are stunningly illuminated by Aura Sync lighting that can be seen through the front and right-side of the 4mm thick tempered glass panels. This case reserves space for a water-cooling pump and reservoir above the power supply unit shroud, providing mini-ITX/DTX enthusiasts with the flexibility to customize their liquid-cooling loop solution.
Take Personalisation up a Level with the ROG Z11
The ASUS ROG Z11 features integrated addressable RGB LEDs in the front and side panels, which can be customized using a dedicated control button or with Aura Sync lighting software. These allow ROG Z11 to light up with infinite colour and a wide range of effects, which can be synchronized with a vast ecosystem of Aura Sync-compatible components. Additionally, for more personalisation two ROG nameplates are included to complement onboard lighting. Depending on your preferred orientation, you’ve got the choice of either displaying the nameplates horizontally or vertically.
Experience the ROG Z11 in all its Glory

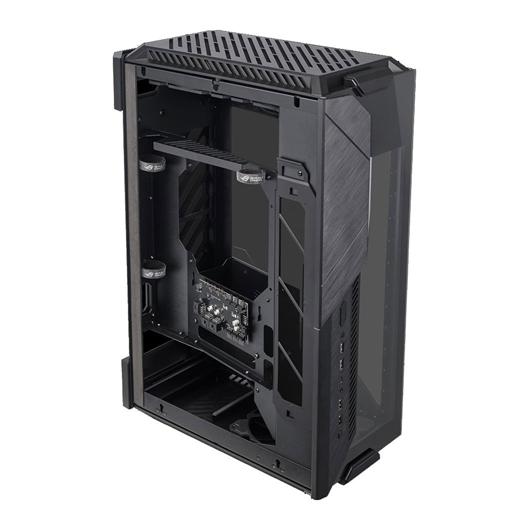

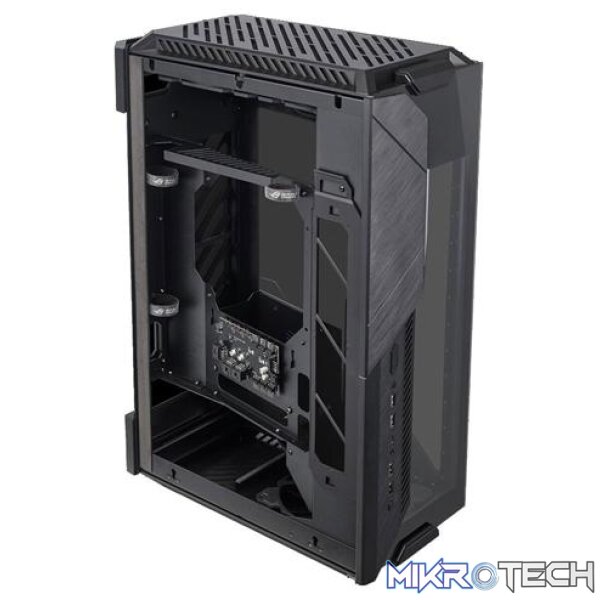

The motherboard tray’s 11° tilt creates a maximum of 40 mm of extra space for easy cable management. The PSU shroud offers two pieces, and the removable second piece provides greater cable management space and greater airflow directed towards the graphics card. Handy cable strips enable convenient bundling of cables. The multifunction cover cleverly hides cabling and allows for an SSD or ROG Aura Terminal to be mounted.
Keep your PC Clean and Dust-free
Removable dust filters on the top, bottom, left, front and back sides provide complete protection from dust, and make short work of cleaning and maintenance.
Place in Either a Vertical or Horizontal Position
ROG Z11 can be placed in either the vertical or horizontal position, allowing users to make any build their own. On top of providing the flexibility to orient the case according to workspace availability and preferences, Z11 also empowers users to choose the orientation that is optimal for the components in their build. Angled and regular power cords are also included in the accessory box to conveniently complement each position.
Front Panel Access to ARGB Lighting Control
A built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips, and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze.
ASUS Exclusive Thermal Performance
PATENTED 11° TILT DESIGN
Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
| SPECIFICATIONS | |
| Brand | Asus |
| Series | Republic of Gamers |
| Model | ROG Z11 |
| Physical Details | |
| Colour | Black |
| Side Panel | Tempered Glass (Front & Right) |
| Front I/O Ports | 2x USB 3.2 Type-A Gen 1 |
| 1x USB 3.2 Type-C Gen 2 | |
| 2x USB 2.0 Type-A | |
| 1x Audio Jack | |
| Motherboard Support | Mini-DTX, Mini-IT |
| Expansion Slots | |
| Total Slots | 3 |
| Drive Bays | 4 x 2.5? Bay |
| 1 x 2.5?/3.5? Combo Bay | |
| PSU Support | 160 mm (ATX or SFX) |
| Fan Support | |
| Top | 2x 120 mm, 2x 140 mm |
| Rear | 2x 120 mm |
| Radiator Support | |
| Rear | Up to 120 mm, Up to 240 mm |
| Clearance | |
| CPU Cooler Height Limitation | Up to 130 mm |
| GPU Length Limitation | Up to 320 mm |
| General | |
| Removable Dust Filters | Front, Top, Bottom |
| Cable Management Space | Up to 40 mm |
| Dimensions | 194 x 531 x 386 mm |
| Weight | 8.73 kg |
| Warranty Information | |
| Warranty | 3 Year Warranty |
