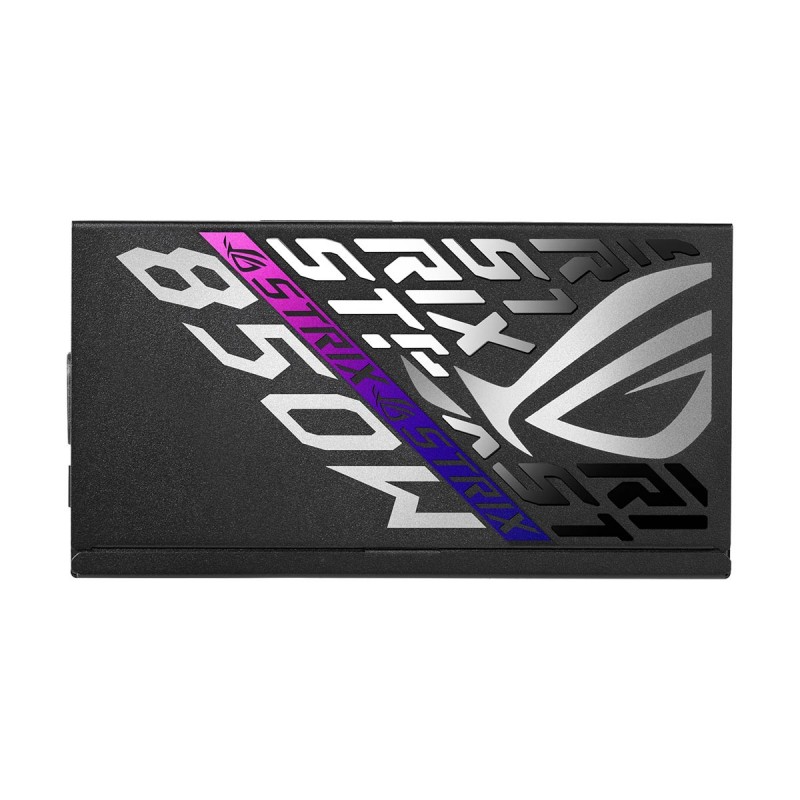

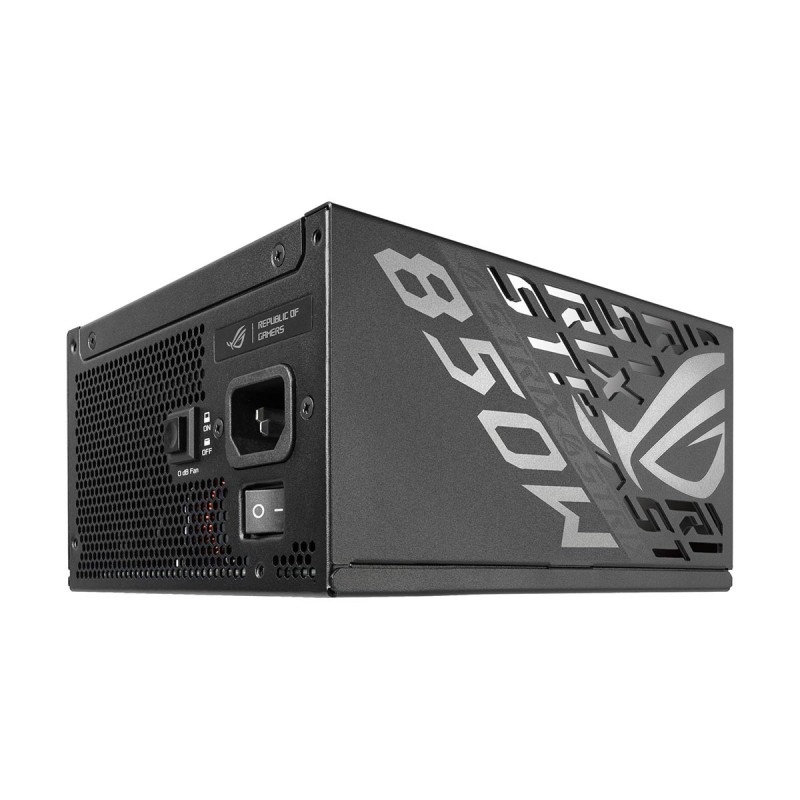

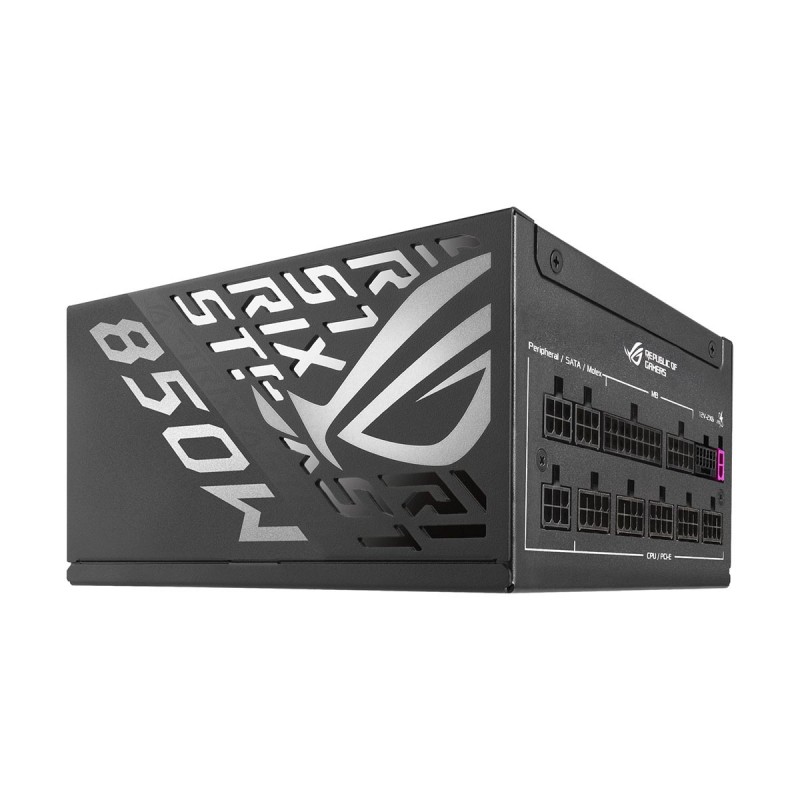

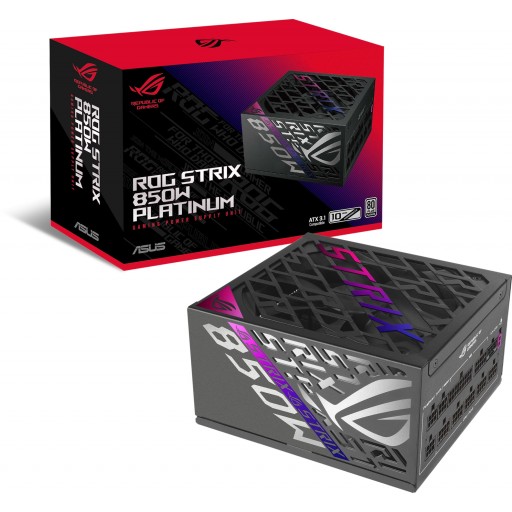

ASUS ROG Strix 850W 80+ Platinum Fully Modular ATX 3.1 Power Supply
KEY FEATURES:
– ATX 3.1 Power Supply
– Gallium Nitride (GaN) MOSFET Technology
– ASUS GPU-FIRST Voltage Sense
– Fully-Modular Design with Active PFC
– 600W 16-Pin 12V-2×6 Ready
– Power Excursions: 1700W for 100?s
– Rated Power: 850W
– Depth Clearance: 160mm
– 80 Plus Platinum Certification

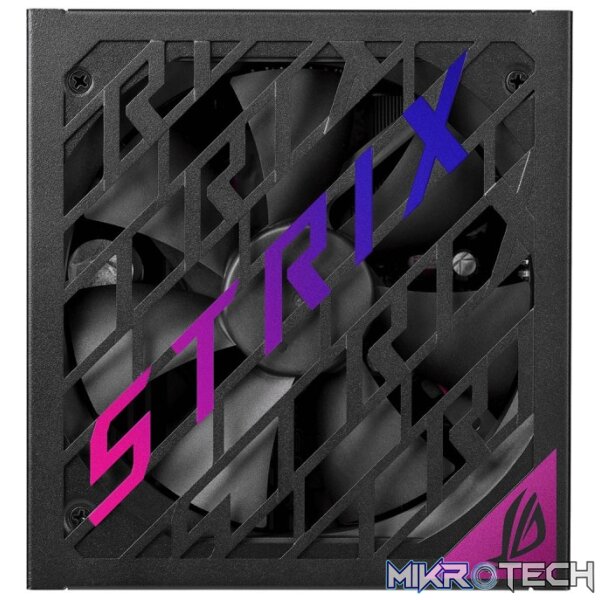

– 135mm Dual Ball Bearing Fan
– Zero RPM Fan Mode
– OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO Protections
– Flat Black Rubberised Cables
– 105°C Rated Capacitors
– Unique Etched Cable Design
– 10 Year Warranty
Description
ASUS ROG Strix 850W 80+ Platinum Fully Modular ATX 3.1 Power Supply
ROG-STRIX-850P-GAMING
90YE00W2-B0NA00
The ROG Strix 850W Platinum delivers ultra-stable power with modern ATX 3.1 compliance and a native PCIe 5.1 (12V-2×6) cable for next-gen GPUs (up to 600W from the single 16-pin). Inside, GaN MOSFETs boost efficiency and allow larger ROG heatsinks for cooler, quieter operation. A dual-ball-bearing fan with 0 dB mode keeps noise down, and premium components earn 80 PLUS & Cybenetics Platinum efficiency and a Lambda “A” low-noise rating. Backed by a 10-year warranty
Key Features
850W continuous output, 80 PLUS Platinum & Cybenetics Platinum efficiency.
ATX 3.1 design for tighter voltage/current regulation and next-gen stability.
Native PCIe 5.1 (12V-2×6) 16-pin cable included (up to 600W to the GPU).
“GPU-FIRST” Intelligent Voltage Stabilizer (IVS) can improve GPU voltage stability by up to 45% (via the IVS lead).
High-conductivity copper pins in PCIe connectors reduce temps by up to 29%.

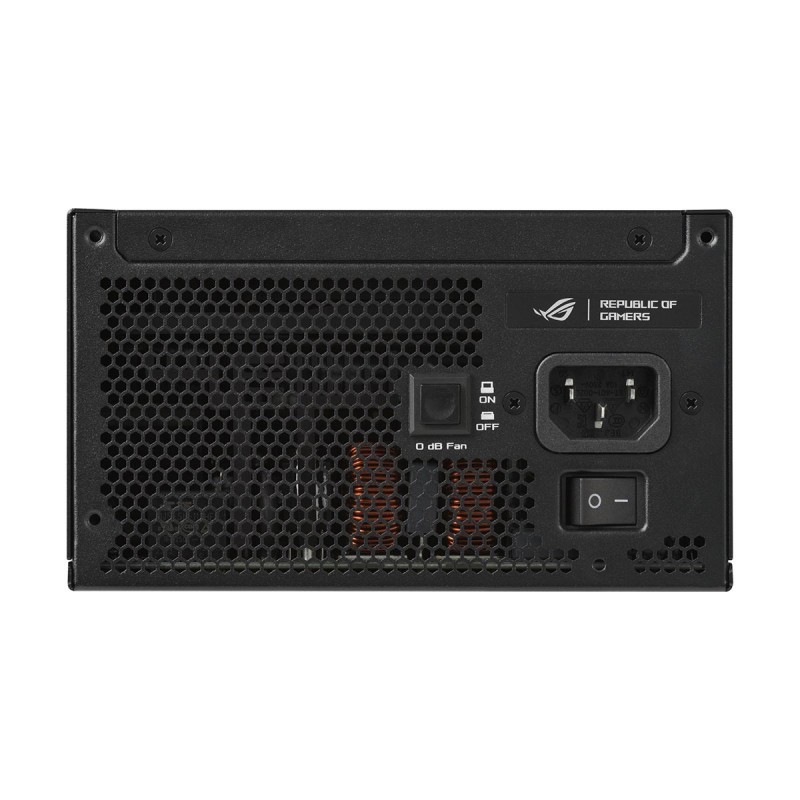

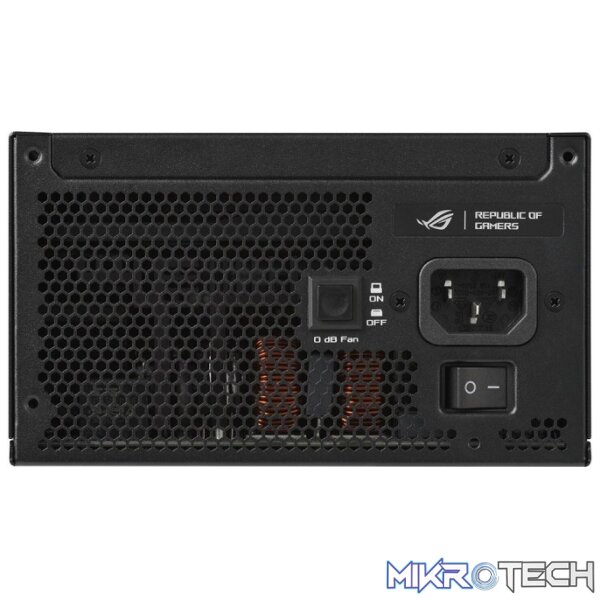

ROG heatsinks + dual ball-bearing fan, 0 dB semi-passive mode with on/off button.
Fully modular with etched flexible cables for easy routing and UL-tested safety.
Comprehensive protections: OPP/OVP/UVP/SCP/OCP/OTP.
Cybenetics noise rating: A (sub-25 dB under defined loads).
Compact 160 mm length for wider chassis compatibility.
| SPECIFICATIONS | |
| Brand | Asus |
| Series | ROG Strix PSU Series |
| Model | ROG Strix 850P 850W Platinum (ROG-STRIX-850P-GAMING / 90YE00W2-B0NA00) |
| ATX Version | ATX12V 3.1 |
| Modularity | Fully Modular |
| Continuous Power | 850W |
| MTBF | >120,000 hours @ 25°C |
| Efficiency Ratings | 80 Plus Platinum Certified |
| Multi-GPU Ready | Yes |

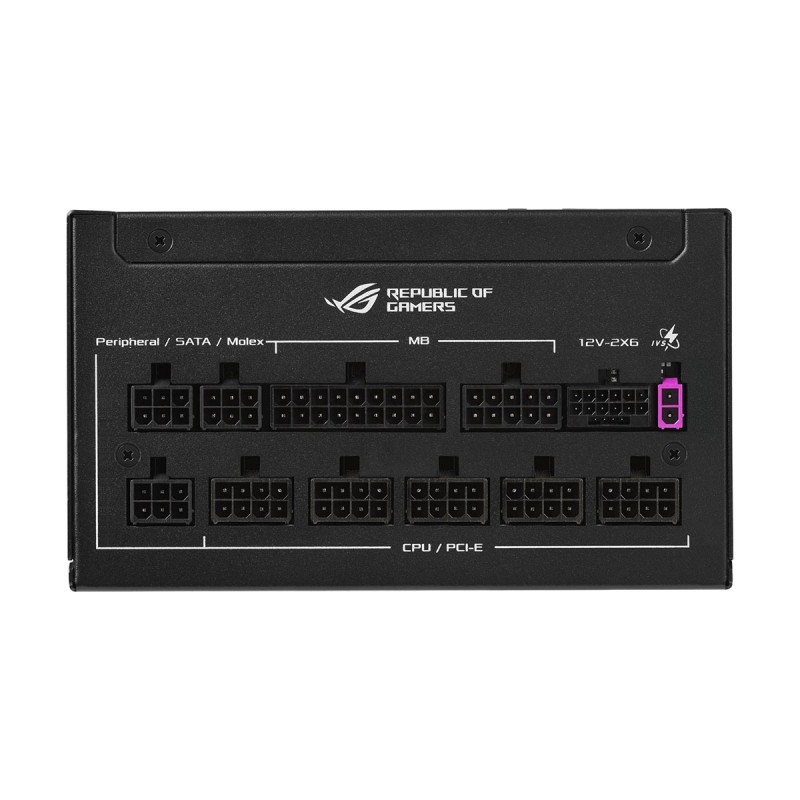

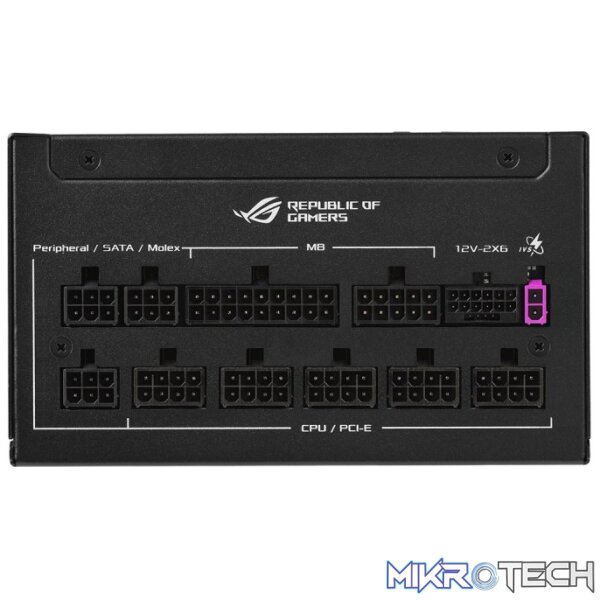

| Cables | 1x 24-Pin Motherboard Power Cable (610mm) |
| 2x 8-Pin (4+4) EPS CPU Cables (1000mm) | |
| 1x 12V-2×6 PCIe Gen 5 16-pin Cable (750mm) | |
| 3x 8-Pin (6+2) PCIe Twin-Head Cable (750mm) | |
| 6x SATA Connectors | |
| 3x 4-Pin Molex Connectors | |
| Fan | |

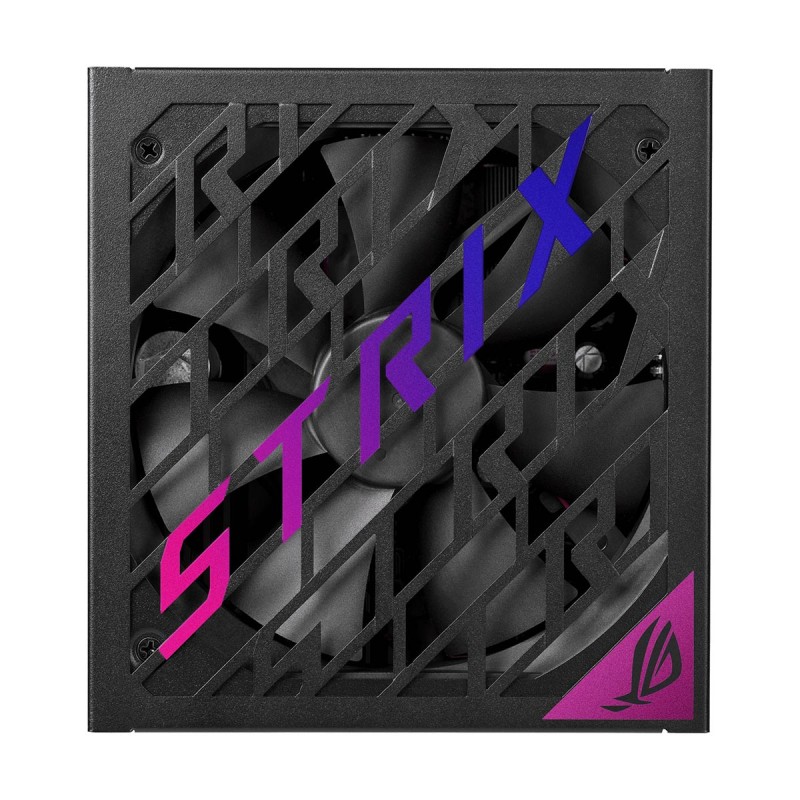

| Fan Size | 135mm |
| Bearing Technology | Dual Ball bearings |
| Zero RPM Mode | Yes, controlled by 0dB Fan Button |
| General | |
| Form Factor | ATX |
| Dimensions | 160 x 150 x 86mm (D x W x H) |
| Weight | 1.7kg |
| Colour | Black |
| Boxed Accessories | ROG Strix DIY sticker x 1 |
| User Manual x 1 | |
| Warranty Information | |
| Warranty | 10 Year Limited Warranty |
