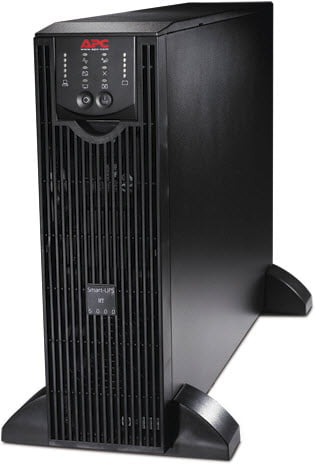

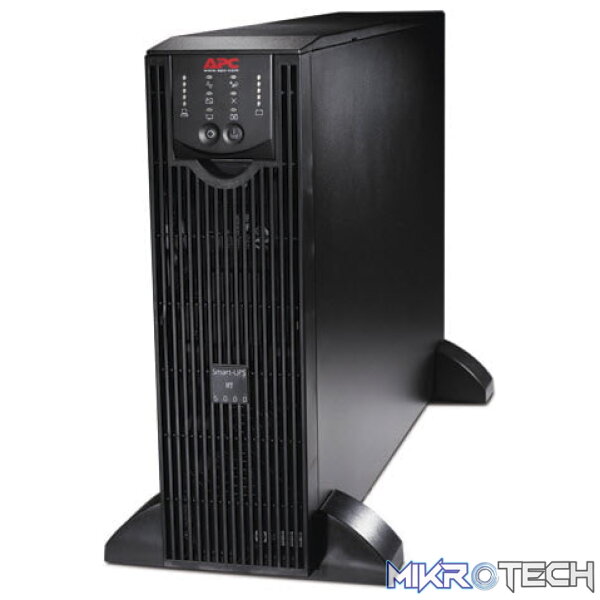

APC Smart-UPS SRT SRT5KXLi UPS with LCD graphics display

Name: APC Smart-UPS SRT SRT5KXLi UPS with LCD graphics display - MikroTech
Brand: APC (American Power Conversion)
SKU: UP-ASRT5000
Price: 84139.99 ZAR
Availability: OutOfStock

R84,139.99 incl. VAT

Out of stock

Compare

Join the waitlist to be emailed when this product becomes available

By ticking this box you agree to an account being created using the given email address and to receive waitlist communications by email

Enter your email address to join the waitlist for this product

Product ID: 757869 Category: UPS

Product Description

Share This Product On:

Facebook X LinkedIn Reddit Pinterest WhatsApp Messenger Threads Telegram Bluesky Mastodon Tumblr Email

APC Smart-UPS SRT SRT5KXLi with LCD graphics display + AP9619 (Network Management Card + Environmental Monitoring) installed in smart slot, Double Conversion Online, 5000VA; with monitoring software, serial + UTP interface, support multiple extended-run optional battery pack (SRT192BP), 3U rackmount convertible via SRTRK2, with cooling fan

Product Specifications

Output Power Capacity	3500 Watts / 5000 VA
Max Configurable Power	3500 Watts / 5000 VA
Nominal Output Voltage	230V
Output Voltage Note	Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load	0,92
Output Voltage Distortion	Less than 3%
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor	0,125694444
Waveform Type	Sine wave
Output Connections	(8) IEC 320 C13
(2) IEC 320 C19	(4) IEC Jumpers
Bypass	Internal Bypass (Automatic and Manual)
Nominal Input Voltage	230V
Input Frequency	50/60 Hz +/- 5 Hz (auto sensing)
Input Connections	Hard Wire 3-wire
Input voltage range for main operations	160 – 280V
Input voltage adjustable range for mains operation	100 – 280V
Other Input Voltages	220240
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules	2
Typical recharge time	2.50 hour(s)
Replacement Battery	RBC44
RBC Quantity	1
Extended Run Options	APC Smart-UPS RT 5000VA 230V
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot	Pre-Installed SmartSlot Cards
AP9631	Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators	Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm	Emergency Power Off (EPO)
Surge energy rating	480 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height	432.00 mm
Maximum Width	130.00 mm
Maximum Depth	660.00 mm
Rack Height	3U
Net Weight	54.55 KG
Shipping Weight	63.64 KG
Shipping Height	347.00 mm
Shipping Width	603.00 mm
Shipping Depth	980.00 mm
Color	Black
Units per Pallet	6
Operating Environment	0 – 40 °C
Operating Relative Humidity	0 – 95%
Operating Elevation	0-3000 meters
Storage Temperature	-15 – 45 °C
Storage Relative Humidity	0 – 95%
Storage Elevation	0-15000 meters
Audible noise at 1 meter from surface of unit	55.00 dBA
Online Thermal Dissipation	1057.00 BTU/hr
Regulatory Approvals	C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, UL 1778, VDE
Environmental Compliance	RoHS 7b Exemption
Brand	APC (American Power Conversion)
