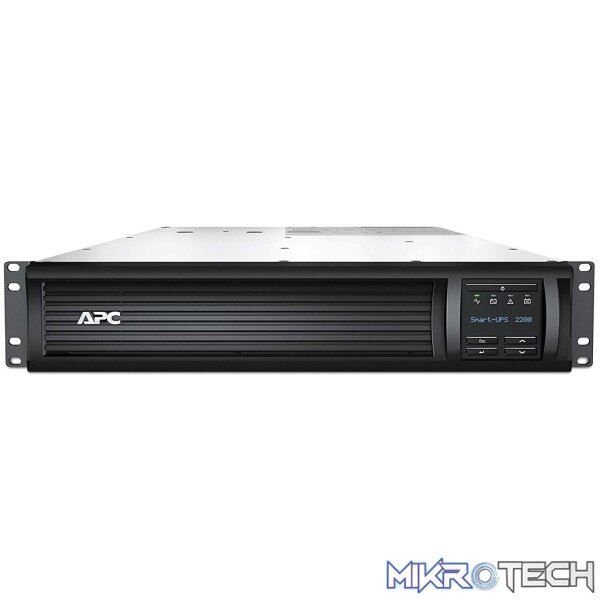

APC Smart-UPS smT2200RMi2UC 2200va / 1980w 2U RackMount UPS with SmartConnect & LCD graphics display

Overview:

Intelligent and efficient solution for the uninterruptible power supply of network systems, choice of the entry-level class to models with scalable autonomy time. Ideal UPS for servers, POS systems, routers, switches, hubs and other devices.

Features:

Supports cold start
Allows temporary battery operation if the mains supply fails.

Energy consumption meter
Indication of usage in kilowatt hours for energy-conscious users.

Green operating mode
Patent pending mode of operation in which unused electrical components are shut down under good power conditions, allowing very high operating efficiency without sacrificing safety.

High online efficiency
Reduces electricity costs, generates less waste heat.

Intuitive LCD user interface
Easy-to-read interface with accurate multilingual information and support for on-site UPS configuration with easy-to-use navigation buttons.

Display of the appointment for the battery replacement
The dynamic display of the recommended battery replacement date in the month and year facilitates long-term maintenance planning.

Pure sinusoidal output signal in battery operation
Simulates mains power for the highest possible compatibility with servers and sensitive electronic systems with active power factor correction.

Successive network shutdown and reboot
Customization of shutdown and reboot sequences for connected servers and UPS systems.

Single module with switchable outputs
Single output group for the separate control via the UPS system for the targeted restart of non-responsive systems, the successive switching on or off of systems or the shutdown of uncritical loads.

Smart Connect
The innovative, easy-to-use remote monitoring feature provides automatic notifications, firmware updates and advanced support services.

Smart slot
Equip your UPS with management cards with individual functions.

Compatible with StruxureWare Data Center Expert
Supports centralized management with InfraStruXure Central.

Charging the battery with temperature compensation
Extends the life of the battery by regulating the charging voltage according to the actual battery temperature.

Avoids costly performance issues by keeping your IT equipment and data safe and available
Networking optimized voltage conditioning provides protection against harmful surges and electrical noise. The automatic electronic voltage regulation increases a low input voltage by up to 30% and reduces too high voltages by up to 12% without activating the battery. Reliable battery-backed backup power supply in the event of a power failure or for a controlled system shutdown

Easy operation with full compatibility and the reliability of a leading provider
Ensures a purely sinusoidal output that is recommended by server manufacturers by using power factor correction power supplies. The Smart-UPS has been tested and certified to safety standards, so you can rest assured that the system meets or exceeds the strictest industry standards.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented Green mode for over 97% efficiency. The Smart-UPS was the first network UPS with the Energy Star Seal. The intelligent battery management of the technology pioneer APC optimizes the performance and service life of the battery through the intelligent precision charging function with temperature compensation. Dynamic date display for battery replacement and automatic self-tests ensure high reliability and inform in good time about a required battery replacement. The battery modules are comfortable, easy to connect and can be replaced during operation. The APC-developed Smart-UPS has been in production for 23 years and is the UPS with the most customers worldwide, with over 25 million units sold.

Time savings through easy and comfortable remote access
With management function via the network, via serial interface, USB or optional Ethernet port. Includes Powerchute Business Edition software for convenient monitoring and control, secure OS shutdown and innovative power management features.

Higher productivity through adaptation to your individual requirements
Intuitive LCD interface with accurate information and support for on-site UPS configuration with convenient navigation keys. Over 15 programmable settings, including control of groups of switchable outputs, allow for application-specific settings, thresholds and notifications.

Approval by testing institutes
Ensures that the product has been tested and approved for safe operation with the attached equipment from service providers and within the specified environment.

Adjustable voltage sensitivity
Adjusts the UPS to the power environment or generator application for optimal performance.

Adjustable voltage switching points
Maximizes battery life by providing extended input voltage range or more precise output voltage regulation.

Notification in case of battery failure
Analyzes for the early detection of battery errors allow timely preventive maintenance

Resettable breaker
Allows rapid recovery from overload situations.

Predictive reporting of potential errors
Analyzes for the early detection of errors enable a proactive exchange of components.

User replaceable batteries
Increases availability and reduces the average repair time through the use of trained users to upgrade and replace batteries.

Hot swappable batteries
Ensures uninterrupted power supply to protect systems during battery replacement.

Automatic voltage regulation (AVR) with boost and trim function
Increases UPS availability by correcting over and under voltages without using the battery.

Automatic self-test
Periodic battery self-tests for timely replacement of used batteries.

Intelligent battery management
An intelligent precision charging system optimizes the performance, life and reliability of batteries.

power conditioning
Protects connected devices from surges, surges, lightning and other power failures.

Charging the battery with temperature compensation
Extends the life of the battery by regulating the charging voltage according to the actual battery temperature.

Automatic restart of connected loads after UPS shutdown
Automatically powers up the connected devices when the line voltage returns.

Notification with disconnected battery
Issues a warning if a battery is not available for power.

Notification with disconnected battery
Issues a warning if a battery is not available for power.

Serial interface
Provides management of the UPS via a serial port.

USB interface
Allows management of the UPS via the USB port.

warning tones
Notifies user when the status of the power supply or the UPS system changes.

LED status indicators
Device and power status can be quickly analyzed by optical displays.

Management over the network
Provides remote power management of the UPS over the network via Powerchute Business Edition.
