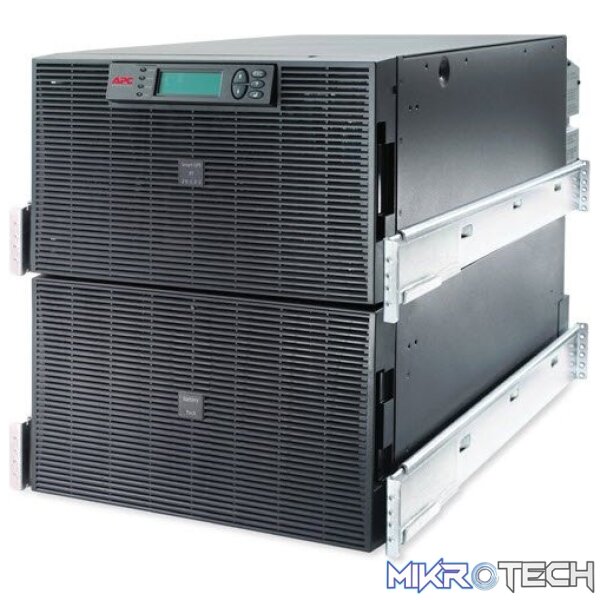

Overview:
High density, double-conversion on-line power protection with scalable runtime
Features:
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Manageable external batteries
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Removable input/output wiring tray
Allows quick and easy installation and maintenance of the UPS.
Single or three-phase input wireable
Provides flexibility for the UPS to be installed using either single or three-phase input wiring.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industryÂ’s most rigorous standards.
Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Cold-start capable
Provides temporary battery power when the utility power is out.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Serial connectivity
Provides management of the UPS via a serial port.
Network manageable
Provides remote power management of the UPS over the network.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtime
Allows additional run time to be quickly added as needed.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
| Output power capacity | 16.0 KWatts / 20.0 kVA |
|---|---|
| Max Configurable Power (Watts) | 16.0 KWatts / 20.0 kVA |
| Nominal Output Voltage | 230V |
| Output Voltage Note | Configurable for 400 or 415V 3 Phase nominal output voltage |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 :: 1 |
| Topology | Double Conversion Online |
| Waveform type | Sine wave |
| Overload Operation | 60 seconds @ 125% and 30 seconds @ 150% |
| Output Connections | (2) IEC Jumpers (Battery Backup) (8) IEC 320 C19 (Battery Backup) (1) Hard Wire 3-wire (H N + G) (Battery Backup) |
| Bypass | Built-in Static Bypass, Internal Bypass (Automatic and Manual), Optional External Bypass |
| Nominal Input Voltage | 230V, 400V 3PH |
| Input frequency | 40 – 70 Hz (auto sensing) |
| Input Connections | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Input voltage range for main operations | 160 – 280V |
| Input Total Harmonic Distortion | Less than 5% for full load |
| Other Input Voltages | 220, 240 |
| Maximum Input Current | 115.0A |
| Input Power Factor at Full Load | 0,98 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Included Battery Modules | 4 |
| Typical recharge time | 2.5hour(s) |
| Nominal Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Expected Battery Life (years) | 43529 |
| RBC Quantity | 4 |
| Extendable Run Time | 1 |
| End of Discharge Battery Voltage | +/-154 V |
| Efficiency in Battery Operation | 0,93 |
| Interface Port(s) | DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Audible and visible alarms : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Maximum Height | 533mm, 53.3CM |
| Maximum Width | 432mm, 43.2CM |
| Maximum Depth | 773mm, 77.3CM |
| Rack Height | 12U |
| Net Weight | 247.73KG |
| Shipping weight | 314.09KG |
| Shipping Height | 990mm, 99.0CM |
| Shipping Width | 610mm, 61.0CM |
| Shipping Depth | 1003mm, 100.3CM |
| Color | Black |
| Units per Pallet | 1 |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95 (non-condensing) % |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -15 – 45 °C |
| Storage Relative Humidity | 0 – 95 (non-condensing) % |
| Storage Elevation | 0-15000meters |
| Audible noise at 1 meter from surface of unit | 59.0dBA |
| Online thermal dissipation | 3770.0BTU/hr |
| Protection Class | IP 20 |
| Approvals | BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE |
| RoHS | Compliant |
| REACH | REACH: Contains No SVHCs |
| Battery Directive | Compliant |
