Product Description

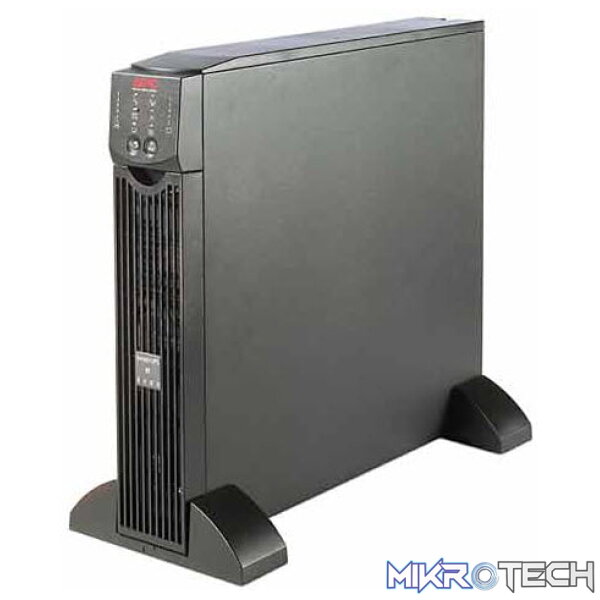

APC RT SURT1000XLi Smart-UPS, Double Conversion Online, 1000VA; with monitoring software, serial interface, with smart slot, support multiple extended-run optional battery pack (SURT48XLBP), with cooling fan, 2U rackmount convertible via SURTRK
Product Specifications
| Output Power Capacity | 700 Watts / 1000 VA |
|---|---|
| Max Configurable Power | 700 Watts / 1000 VA |
| Nominal Output Voltage | 230V |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Efficiency at Full Load | 88% |
| Output Voltage Distortion | Less than 3% |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Crest Factor | 03:01 |
| Waveform Type | Sine wave |
| Output Connections | (6) IEC 320 C13 |
| (2) IEC Jumpers | Bypass |
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 5 Hz (auto sensing) |
| Input Connections | IEC-320 C14 |
| Input voltage range for main operations | 160 – 280V |
| Input voltage adjustable range for mains operation | 100 – 280V |
| Other Input Voltages | 220240 |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Included Battery Modules | 1 |
| Typical recharge time | 3 hour(s) |
| Replacement Battery | RBC31 |
| RBC Quantity | 1 |
| Extended Run Options | APC Smart-UPS RT 1000VA 230V |
| Interface Port(s) | DB-9 RS-232, SmartSlot |
| Available SmartSlot Interface Quantity | 1 |
| Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) | Optional |
| Surge energy rating | 420 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Maximum Height | 432.00 mm |
| Maximum Width | 85.00 mm |
| Maximum Depth | 483.00 mm |
| Rack Height | 2U |
| Net Weight | 23.00 KG |
| Shipping Weight | 27.80 KG |
