Product Description

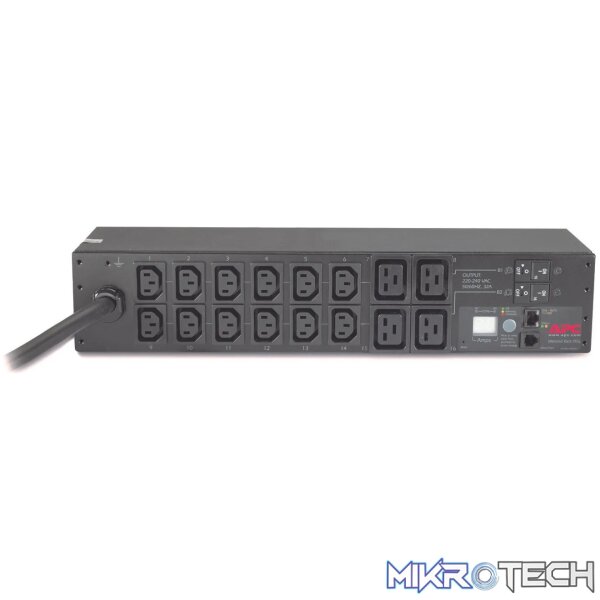

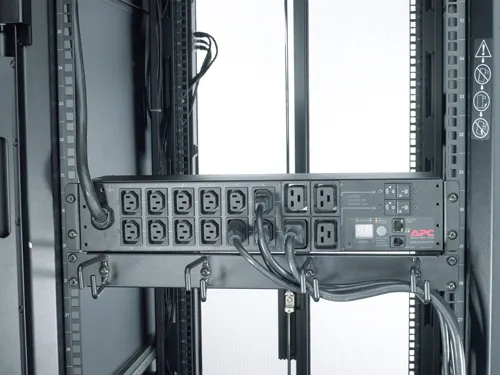

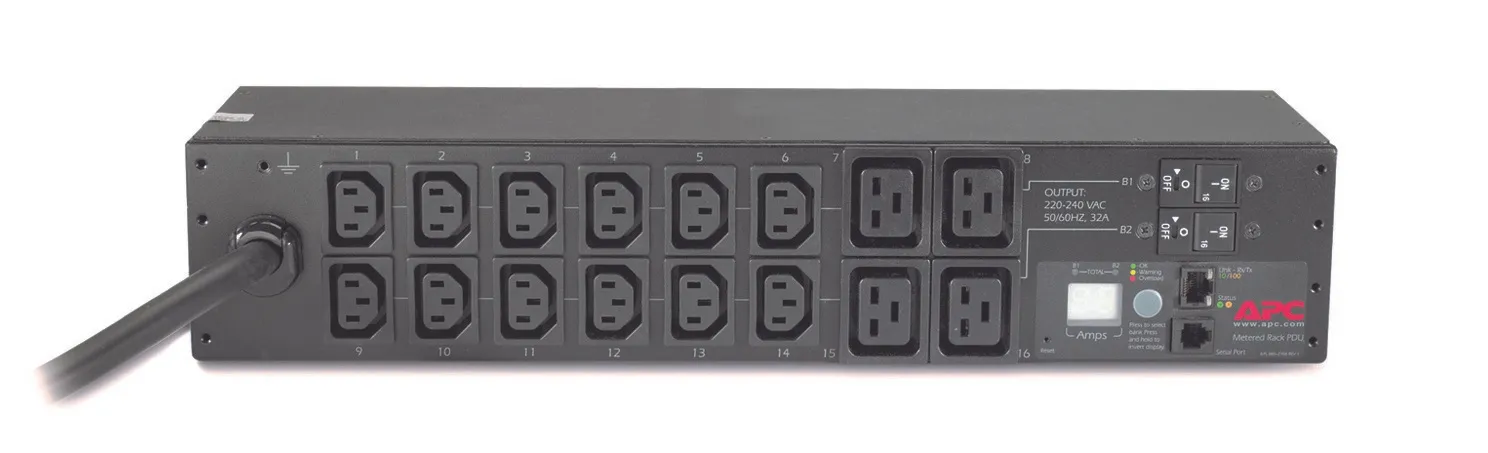

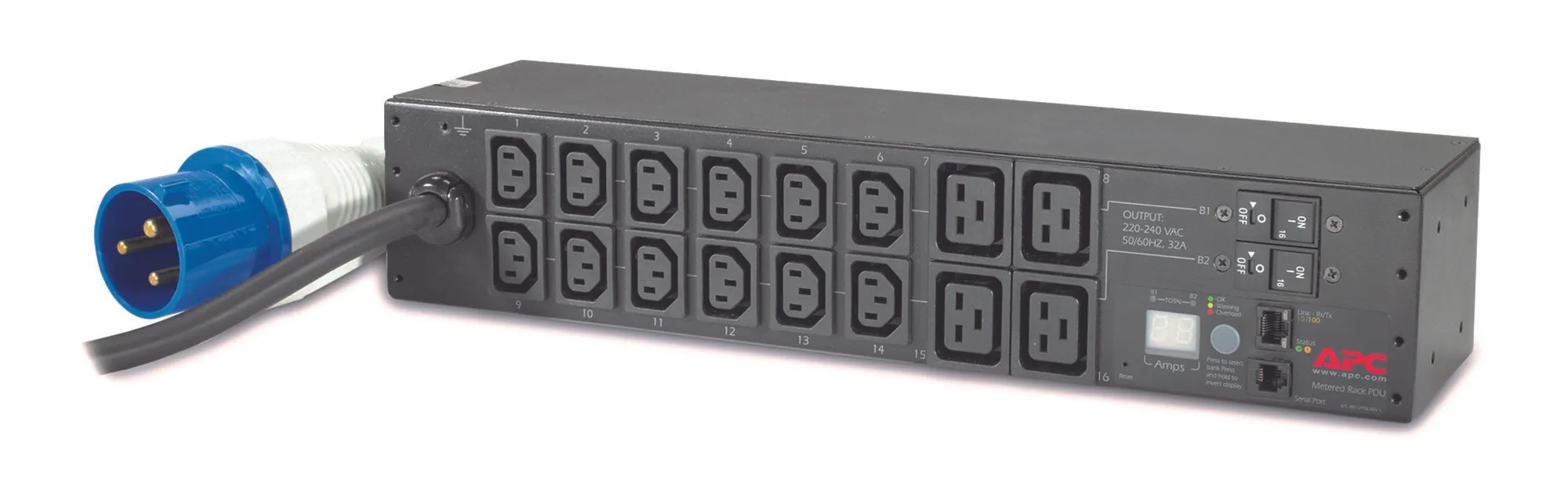

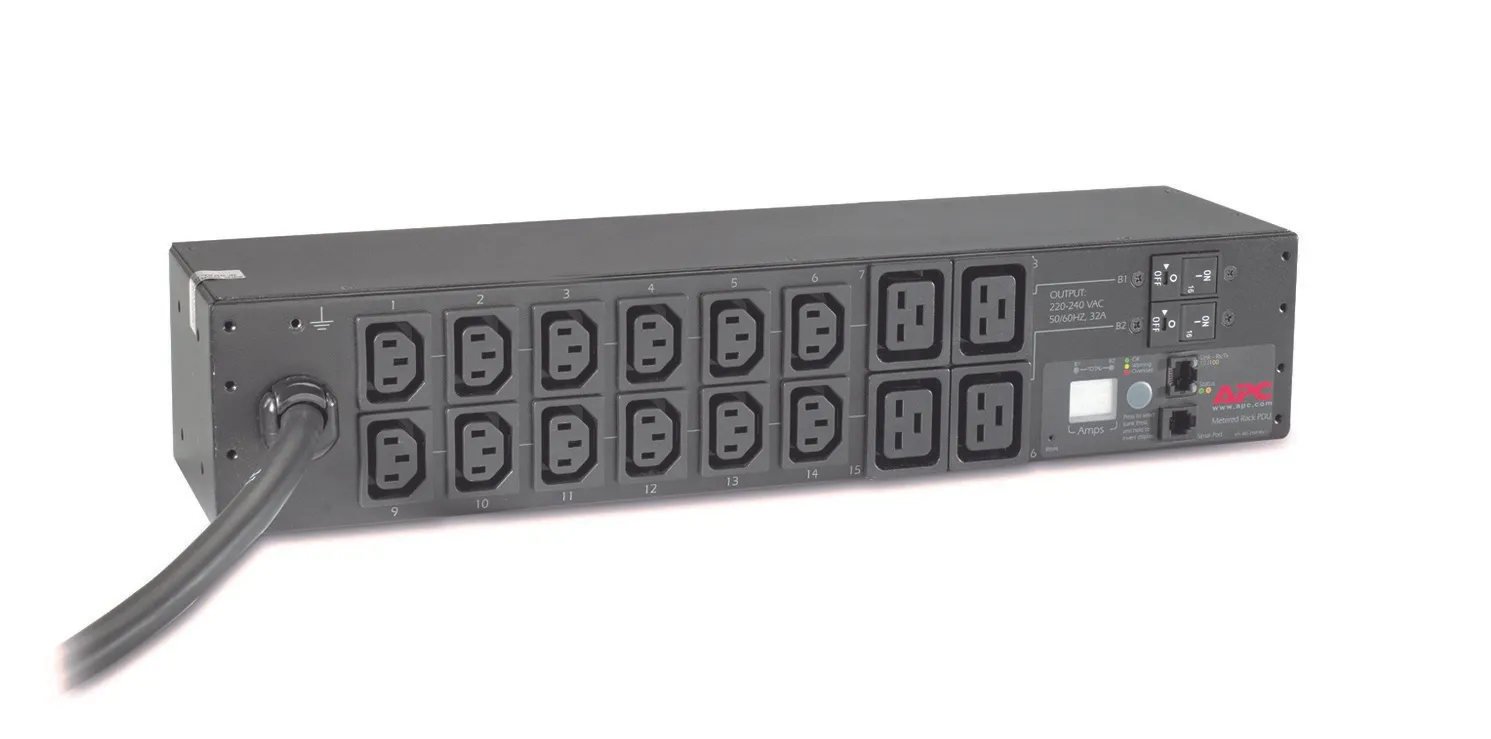

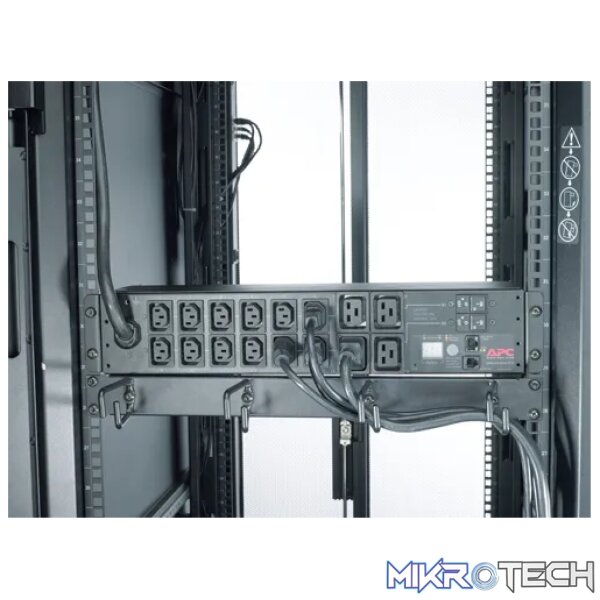

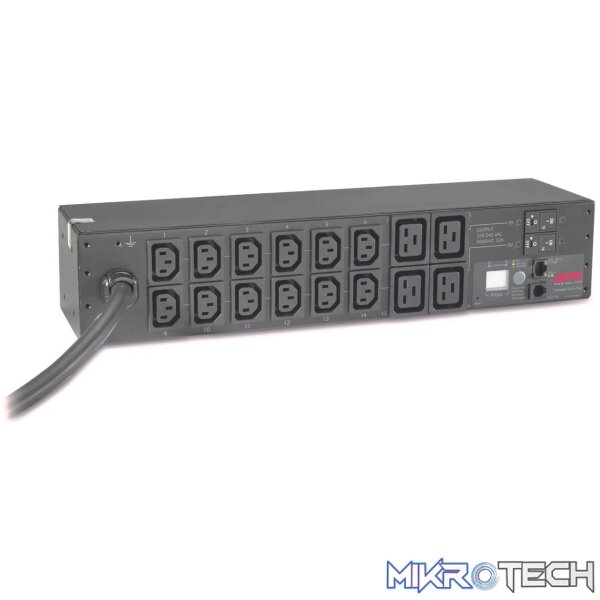

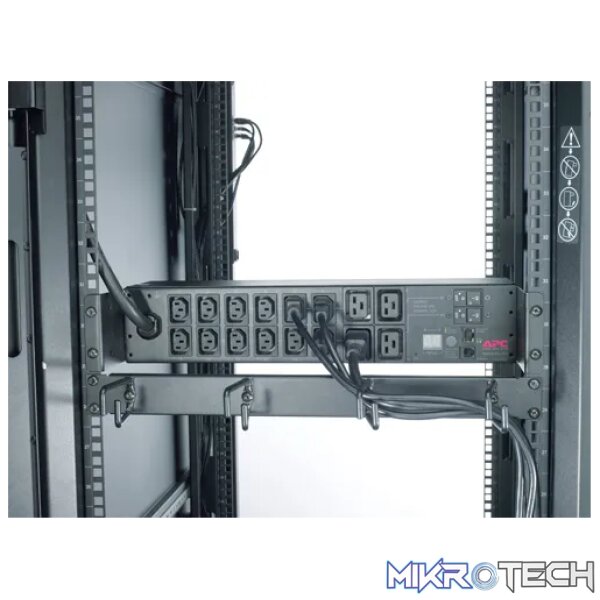

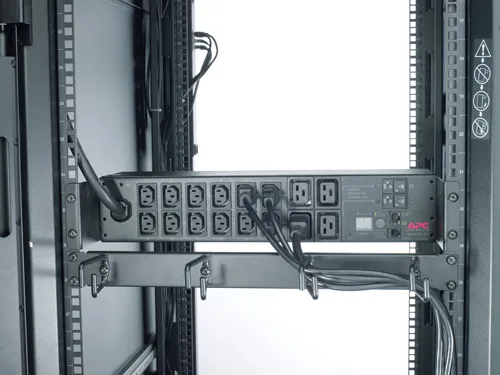

APC RACK PDU METERED 2U 32A 230V (12) C13 & (4) C19
| Maximum input current per phase | 32 |
|---|---|
| Maximum current | 32 |
| AC input frequency | 50 – 60 |
| LED indicators | Y |
| AC outlet types | C13 coupler,C19 coupler |
| Product colour | Black |
| Type | Single-phase |
| Maximum total current draw per phase | 32 |
| Storage temperature (T-T) | -25 – 65 |
| Storage relative humidity (H-H) | 5 – 95 |
| Monitoring | Current,Power,Voltage |
| Input connection type | IEC 309 32A 2P+E |
| Power protection features | Overload |
| Maximum power | 7680 |
| Power plug | IEC309 |
| Nominal input voltage | 208-230 |
| Operating temperature (T-T) | -5 – 45 |
| Operating relative humidity (H-H) | 5 – 95 |
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Load capacity | 7680 |
| On/off switch | Y |
| Compliance certificates | RoHS |
| AC outlets quantity | 16 |
| Rack capacity | 2U |
| Weight | 3360 |
| Dimensions (WxDxH) | 444 x 112 x 88 |
| Certification | C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
| Cable length | 3.66 |
| Output connections | 12 x C13 4 x C19 |
| Package dimensions (WxDxH) | 508 x 368 x 140 |
| Package weight | 5410 |
Product Specifications
| Weight | 6.9100 kg |
|---|---|
| Dimensions | 51.0000 × 37.0000 × 15.0000 cm |
