Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE
Overview:

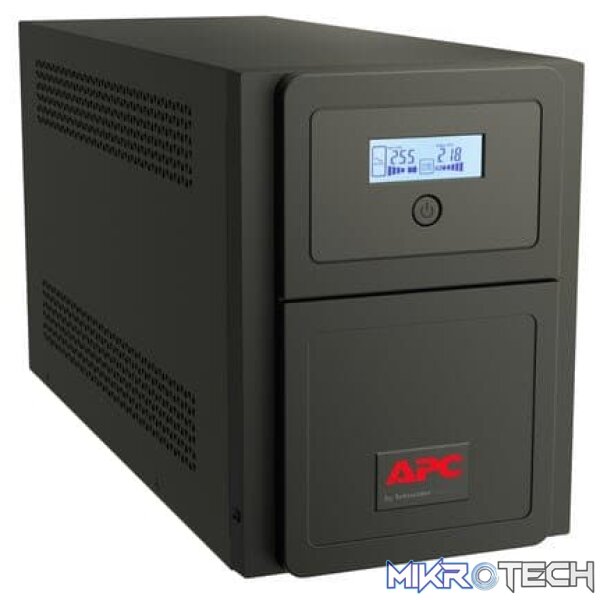

Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers
Features:
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Cold-start capable
Provides temporary battery power when the utility power is out.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Cold-start capable
Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
| Output power capacity | 525Watts / 750VA |
|---|---|
| Max Configurable Power (Watts) | 525Watts / 750VA |
| Nominal Output Voltage | 230V |
| Output Frequency (not synced) | 50/60 Hz +/-1 Hz |
| Load Crest Factor | 3 :: 1 |
| Topology | Line Interactive |
| Waveform type | Sine wave |
| Output Connections | (6) IEC 320 C13 (Battery Backup) |
| Transfer Time | 2ms typical |
| Nominal Input Voltage | 230V |
| Input frequency | 45 – 65 Hz (auto sensing) |
| Input Connections | IEC-320 C14 |
| Input voltage range for main operations | 160 – 295V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 4hour(s) |
| Expected Battery Life (years) | 05-Mar |
| Battery Volt-Amp-Hour Capacity | 133 |
| Interface Port(s) | USB |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Maximum Height | 220MM, 22.0CM |
| Maximum Width | 160MM, 16.0CM |
| Maximum Depth | 410MM, 41.0CM |
| Net Weight | 13.6KG |
| Shipping weight | 16.6KG |
| Shipping Height | 339MM, 33.9CM |
| Shipping Width | 272MM, 27.2CM |
| Shipping Depth | 508MM, 50.8CM |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 90 % |
| Operating Elevation | 0-999. – 9meters |
| Storage Temperature | -10 – 40 °C |
| Storage Relative Humidity | 0 – 95 % |
| Storage Elevation | 0-3000meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
| Approvals | CE |
