Features:
LED status indicators
Quickly understand unit and power status with visual indicators.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
| Output Power Capacity | 300 Watts / 500 VA |
|---|---|
| Max Configurable Power | 300 Watts / 500 VA |
| Nominal Output Voltage | 230V |
| Output Frequency (sync to mains) | 50 Hz |
| Topology | Line Interactive |
| Waveform Type | Stepped approximation to a sinewave |

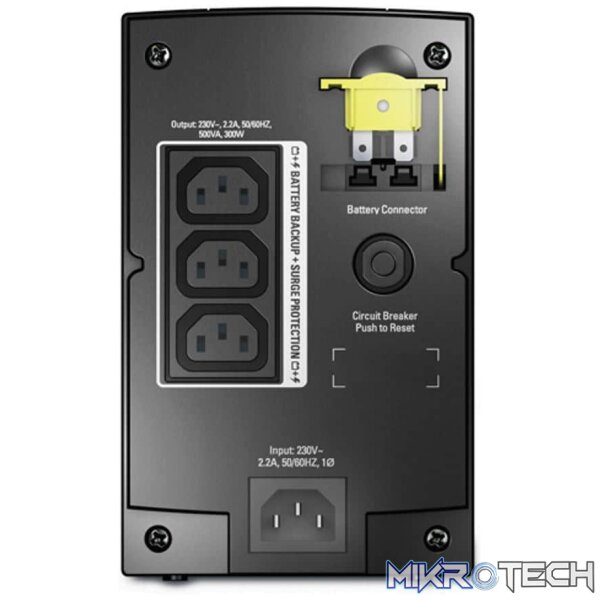

| Output Connections | (3) IEC 320 C13 (Battery Backup) (1) IEC Jumpers (Battery Backup) |
| Nominal Input Voltage | 230V |
| Input Frequency | 45 – 65 Hz |
| Input Connections | IEC-320 C14 |
| Cord Length | 1.83 meters |
| Input voltage range for main operations | 160 – 280V |
| Maximum Input Current | 2A |
| Input Breaker Capacity | 7:00 am |
| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 273 Joules |
| Maximum Height | 185.00 mm |
| Maximum Width | 115.00 mm |
| Maximum Depth | 213.00 mm |
| Net Weight | 5.20 KG |
| Shipping Weight | 5.68 KG |
| Shipping Height | 257.00 mm |
| Shipping Width | 190.00 mm |
| Shipping Depth | 291.00 mm |
| Master Carton Units | 2 |
| Color | Black |
| SCC Codes | 6073130430736 7 |
| Units per Pallet | 60 |
| Operating Environment | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95% |
| Operating Elevation | 0-3000 meters |
| Storage Temperature | -15 – 45 °C |
| Storage Relative Humidity | 0 – 95% |
| Storage Elevation | 0-15000 meters |
| Audible noise at 1 meter from surface of unit | 45.00 dBA |
| Regulatory Approvals | CE |
| RoHS | Compliant |
| REACH | REACH: Contains No SVHCs |
