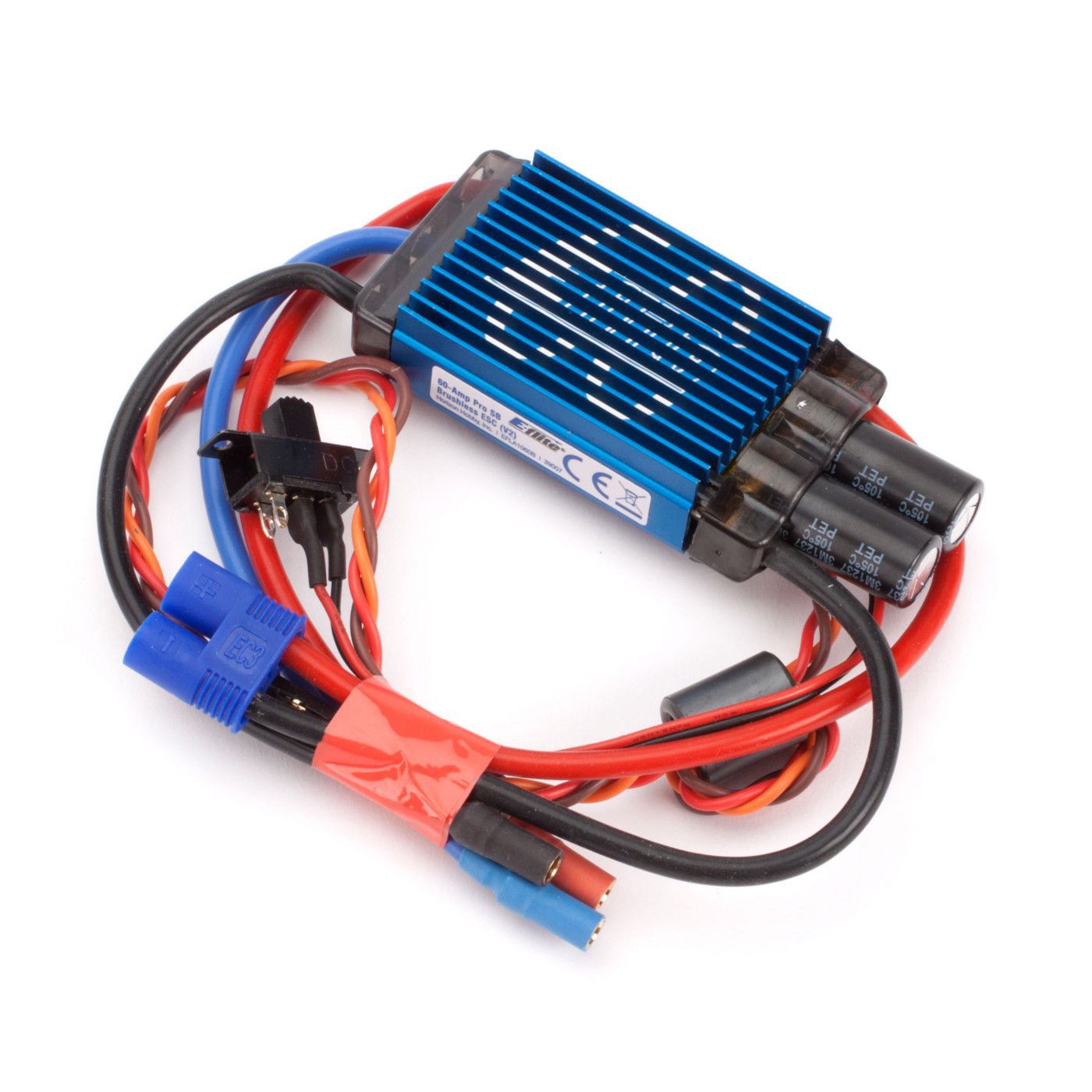

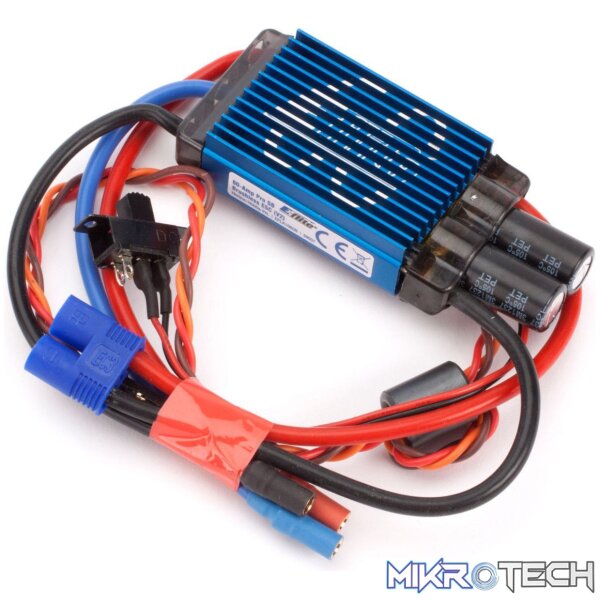

60-Amp Pro Switch-Mode BEC Brushless ESC

The E-flite 60 A Pro Switch-Mode BEC Brushless ESC (V2, model EFLA1060B) offers efficient, high-current performance with integrated switch-mode BEC—eliminating the need for a separate receiver battery. Built for sport and scale aircraft, heli, and other RC systems requiring reliable power delivery.

Features

• 60 A continuous current with up to 75 A burst (15 s) — with proper airflow
• 5 V switch-mode BEC provides 5 A continuous power for up to 7 analog or 6 digital servos
• Supports 3–6 S LiPo or 9–18 cell NiMH/NiCd battery input
• Finned heatsink aluminum body for optimal cooling
• Programmable: motor braking, timing, throttle range, low-voltage cutoff, soft start
• Safe power-arm mode prevents accidental startup
• Includes EC3 battery connector and 3.5 mm bullet motor leads—pre-wired

What’s Included

• E-flite 60 A Pro Switch-Mode BEC ESC (V2) with EC3 and bullet connectors

Needed to Complete

• Compatible brushless motor and battery (3–6 S LiPo or equivalent NiMH)
• Programming tool or throttle stick for configuration

Specifications

• Continuous Current: 60 A
• Burst Current: 75 A (15 s)
• BEC Output: 5 V, 5 A continuous
• Battery Input: 3–6 S LiPo / 9–18 cell NiMH/NiCd
• Dimensions: ~73 × 33 × 15.5 mm
• Weight: ~75 g
• Connectors: EC3 (battery), 3.5 mm gold bullet (motor)
• Programmable: Yes (brake, timing, low-voltage cutoff, soft start, start-up behavior, throttle range)
